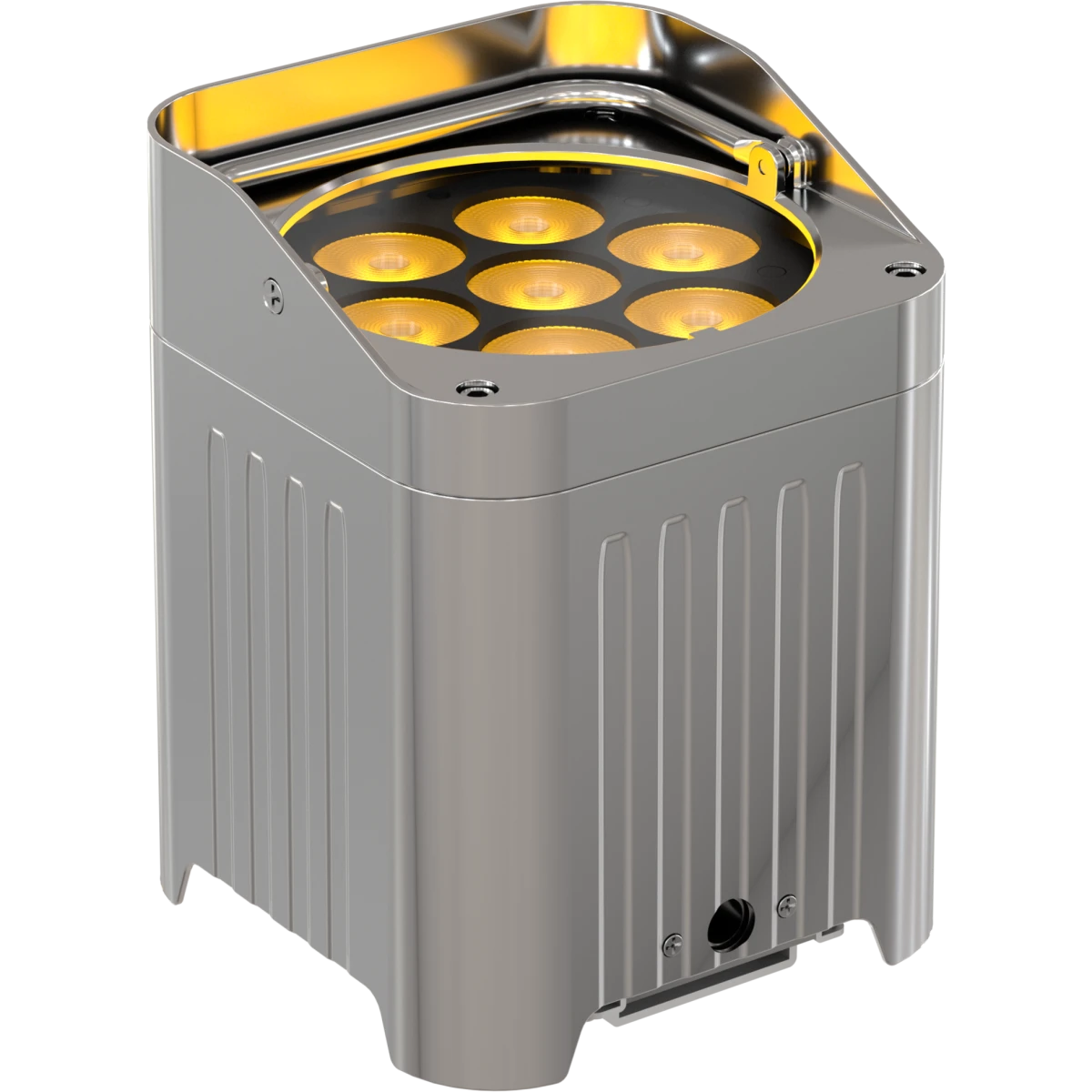

Smart BatPlusNeo
Prolights

Smart BatPlusNeo NEW

ORDER CODE: SMARTBATPLUSNEO

Battery Uplighter with 60W LED source RGB+WW, IP rated

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

Main features:
    • High Power Source: IP rated battery uplighter with 7x10W RGB+WW LEDs.
    • Wireless Ready: CRMX wireless supported.
    • Backward Compatibility: Legacy mode ensures backward compatibility with previous Smartbat+ DMX personality and color setting.
Technical specifications

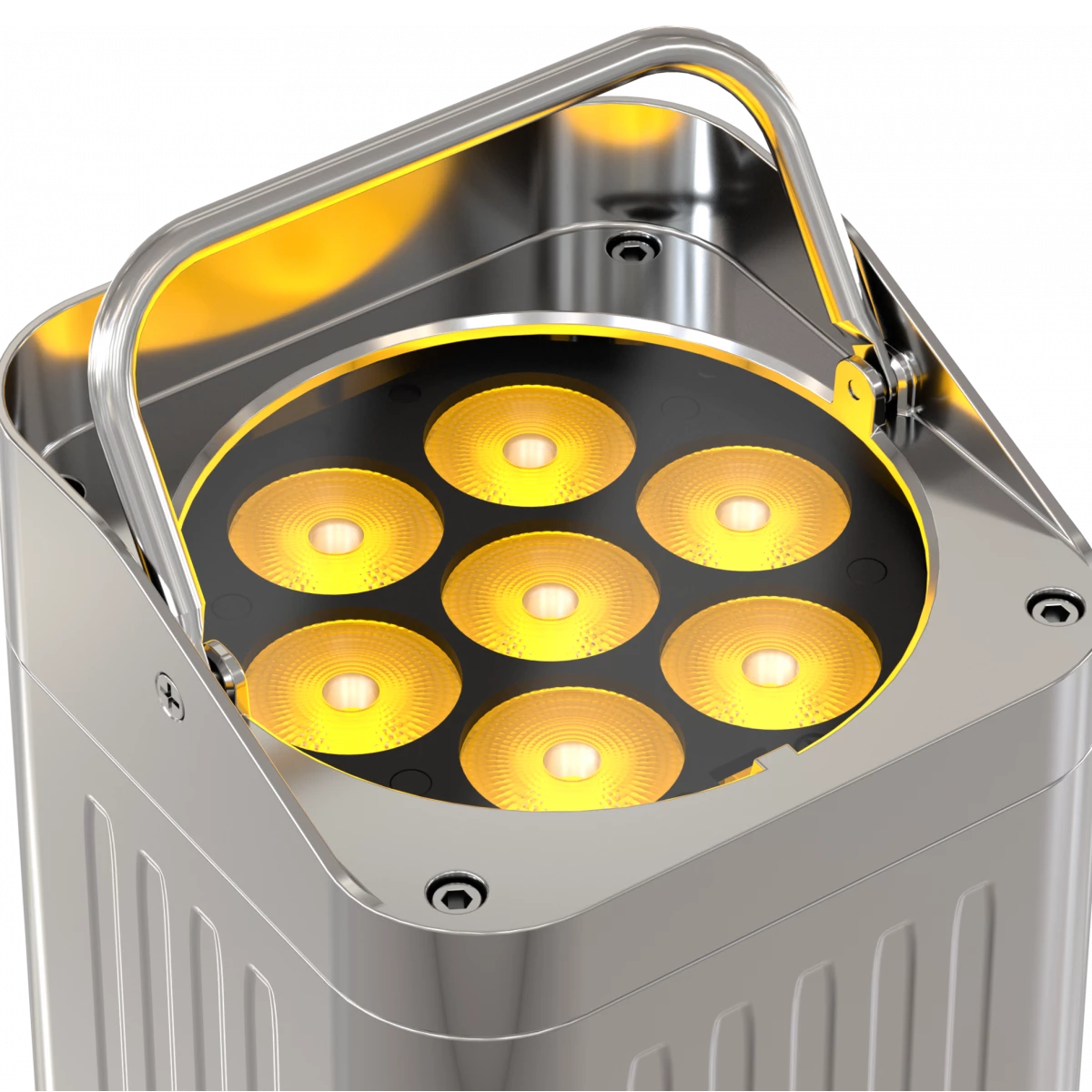

  • Source: 7x10W RGB + Warm White LED
  • Luminous flux: 2'927 lm @Full
  • Lux: 1'493lx @5 m full
  • CRI: Up to 90
  • Source life expectancy: > 50.000 h

  • Beam angle: 11°
  • Field angle: 21°
  • Additional optics: see available accessories

  • Colour mixing: RGB + Warm White
  • White presets: 2.700 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets

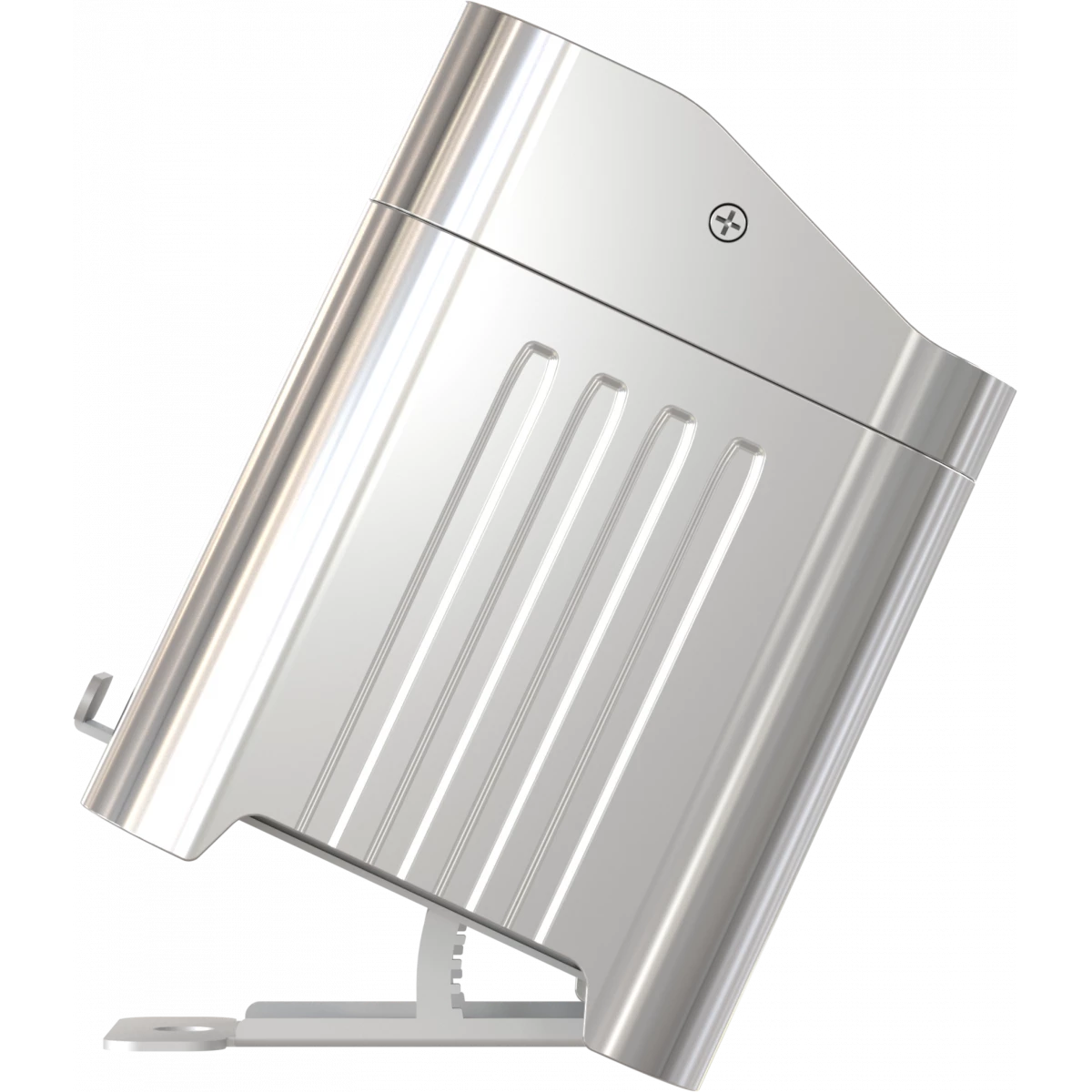

  • Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body

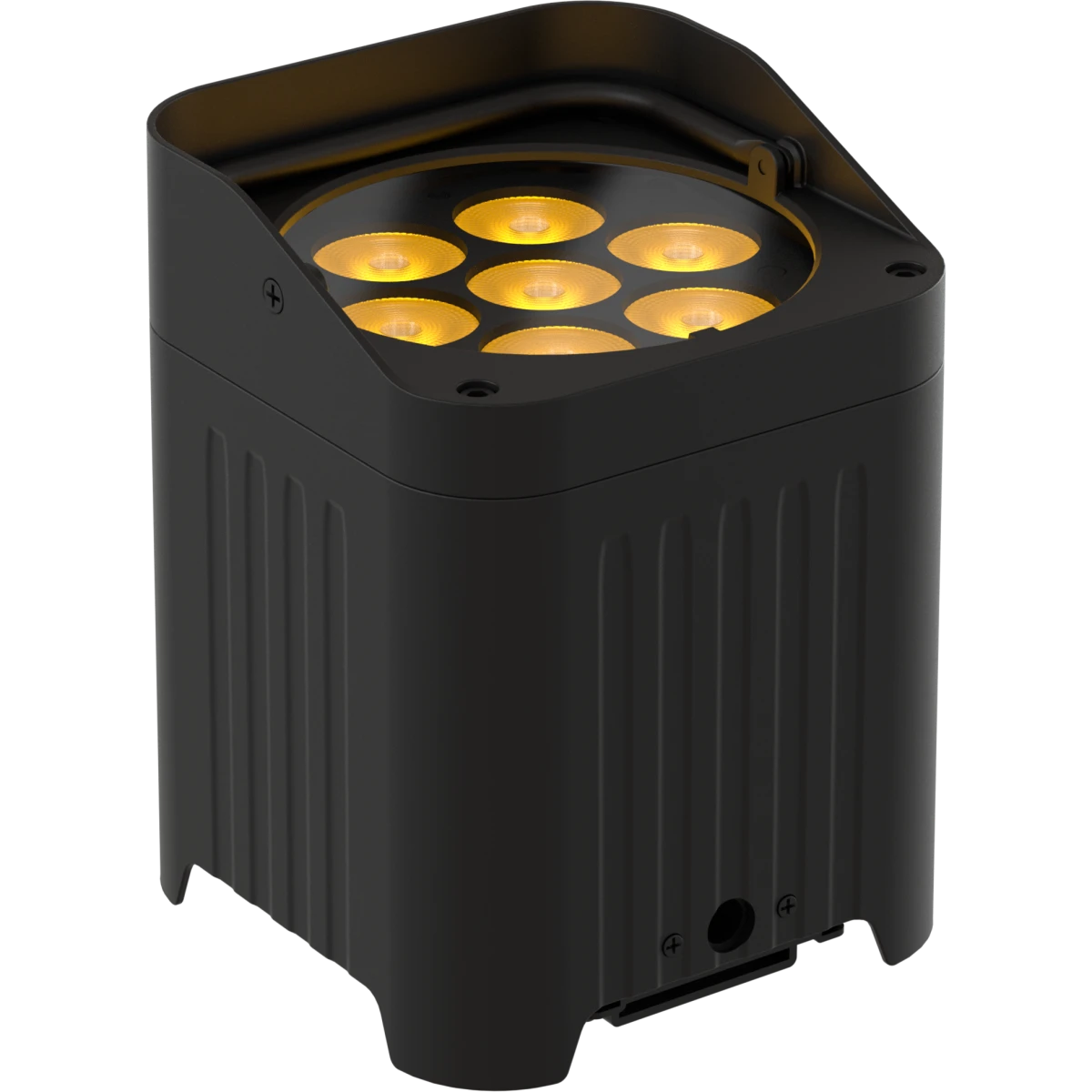

  • Body colour: black, mirror finishing available

  • Protocols: CRMX+W-DMX, DMX512, RDM
  • DMX channels: 4/6/10/3 ch in legacy mode | 1/5/11/17channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver
  • RDM: RDM for remote monitoring and settings

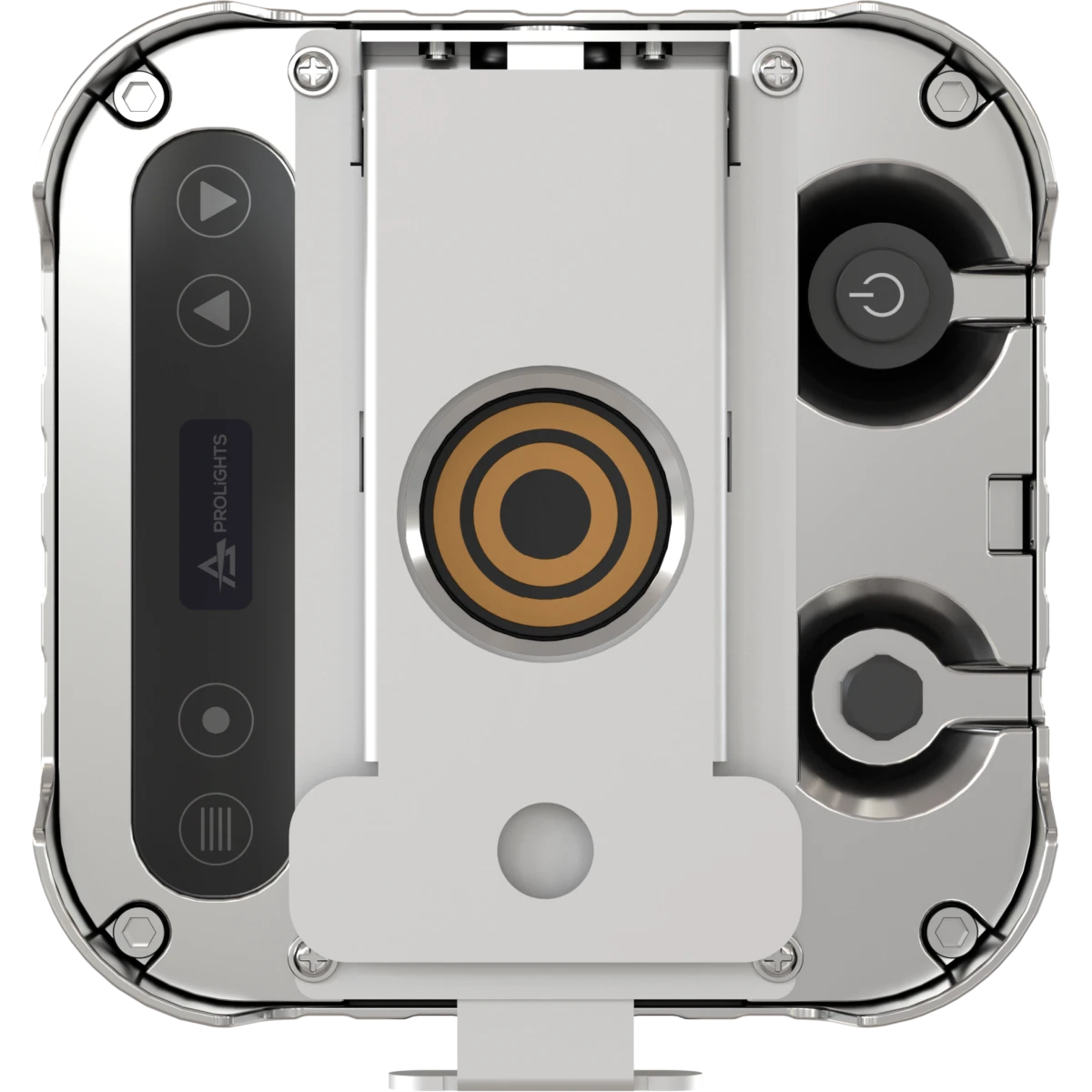

  • Display: Graphic User Interface

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • Selectable PWM: 600 ~ 25.000 Hz

  • Mains power supply: 100-240V - 50/60Hz (charger not included)
  • Max power consumption: 66W

  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 18h
  • Re-charge time: 4h/max
  • Battery status: shown on display

  • IP rating: IP65 for temporary outdoor application
  • Cooling: natural convection cooling
  • Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
  • Weight: 3,4kg / 7.5lbs
