EclFresnel CT+XS
Prolights

EclFresnel CT+XS NEW

ORDER CODE: ECLFRCTPXSBK

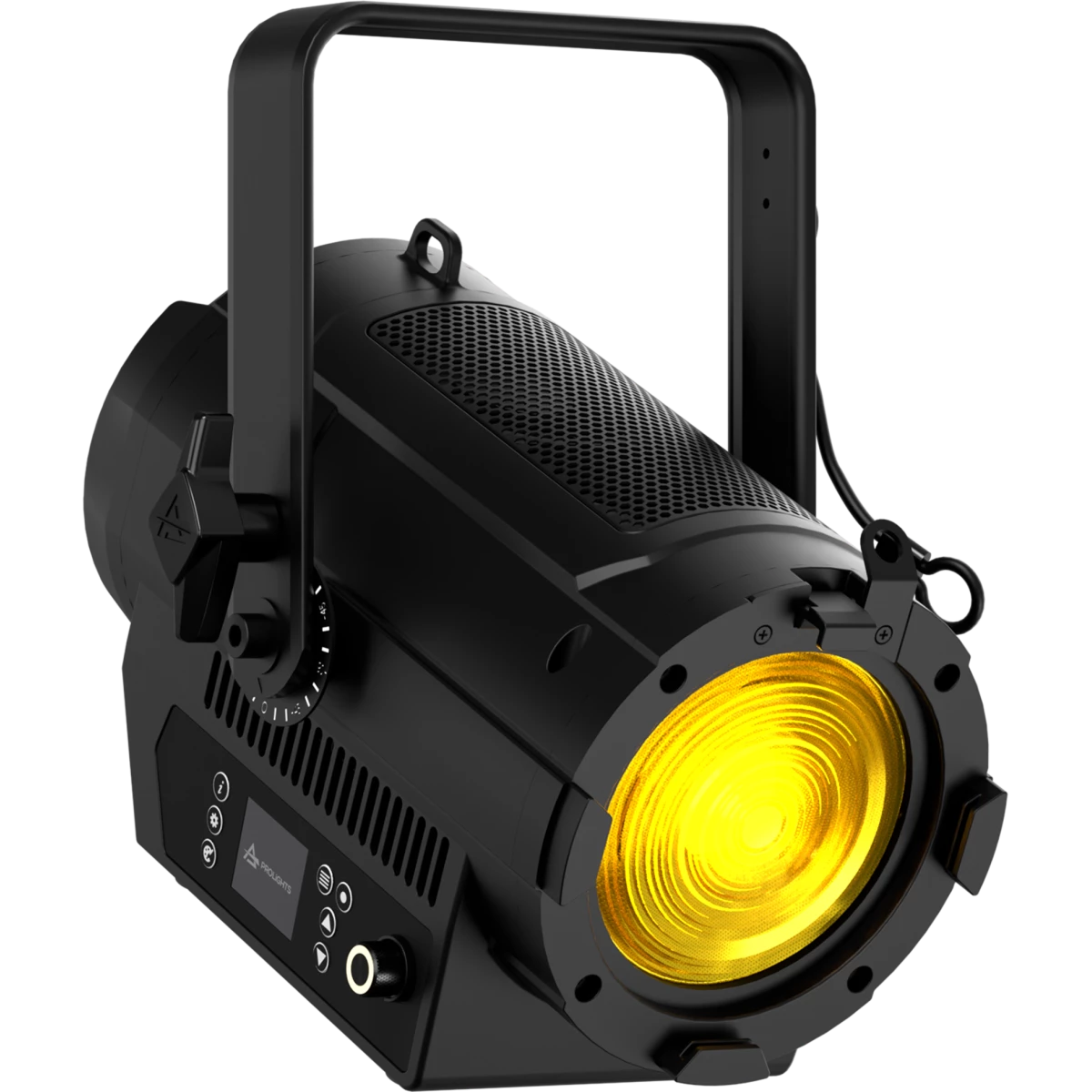

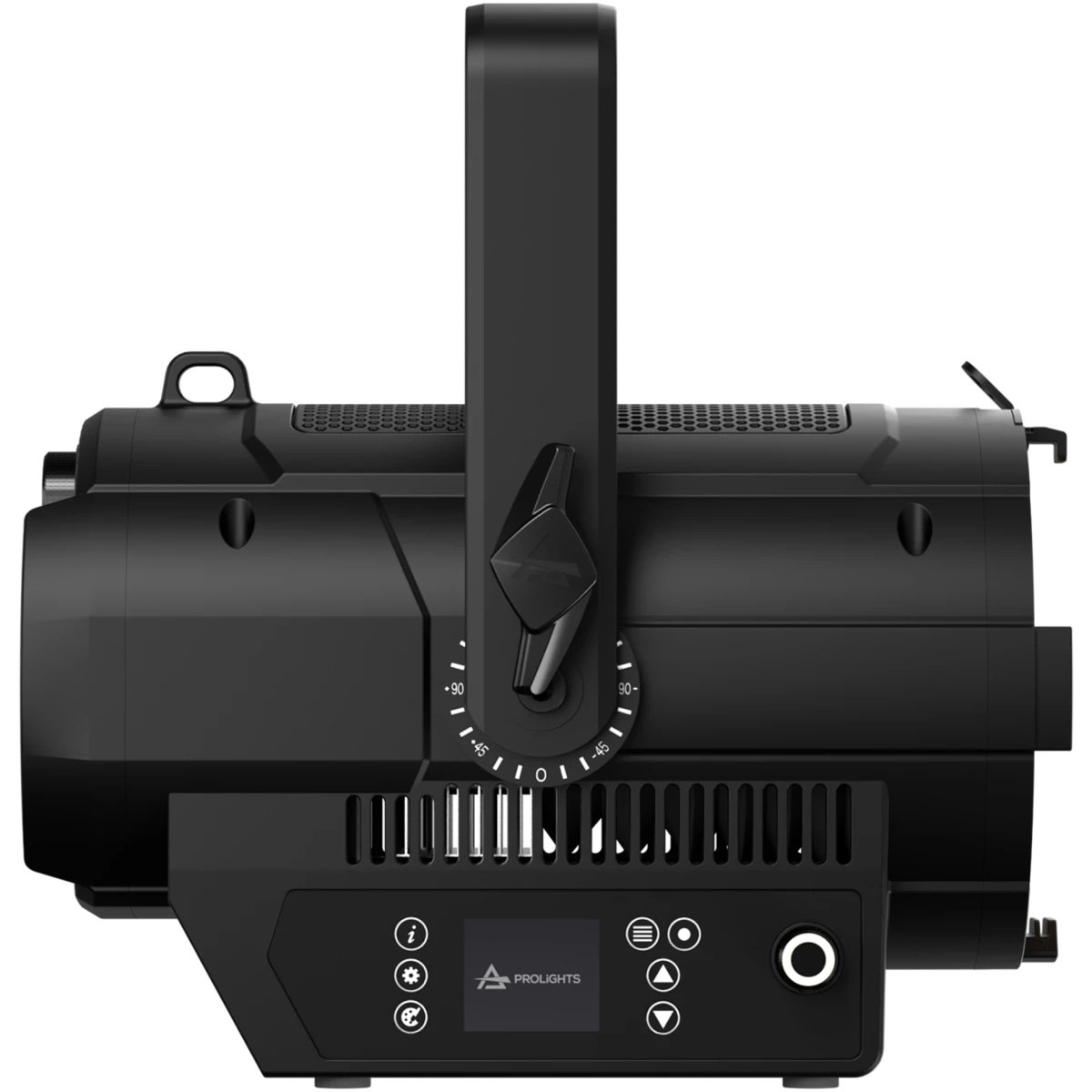

A compact 120W 6 color LED Fresnel with advanced color control.

EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The fixture features SpektraOs allowing high CRI values up to 98, and consistent color reproduction across the range. It includes a 10-75° internal zoom system.

Main features:
  • 120W 6 color LED Fresnel, provides 3,700 lm
  • 10-75° Internal zoom system
  • SpektraOs allow high value in CRI up to 98
  • Linear CCT adjustment from 1.850 K-20.000K
  • Dimmer: linear 0 ~ 100% electronic dimmer
PROLIGHTS.IT
Technical specifications

  • Source: 120W 6 colour LEDs source
  • Luminous flux: (11,2°) 2.406 lm - (74,7°) 3.669 @Full
  • CRI: 97,7 @3.200K; 95,9 @5.600 K
  • Source life expectancy: > 50.000 hrs

  • Zoom range: 10°-75° (Fresnel)
  • Lens diameter: 130mm / 5''
  • Lens type: PMMA lens

  • Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: From 1 to 34 channel
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM
  • Display: 2.4'' Color display

  • IP rating: IP20
  • Cooling: active, silent operation
  • Dimensions: 227x289x294mm / 8.94''x11.38''x11.57''
  • Weight: 3,8kg / 8.38lbs
