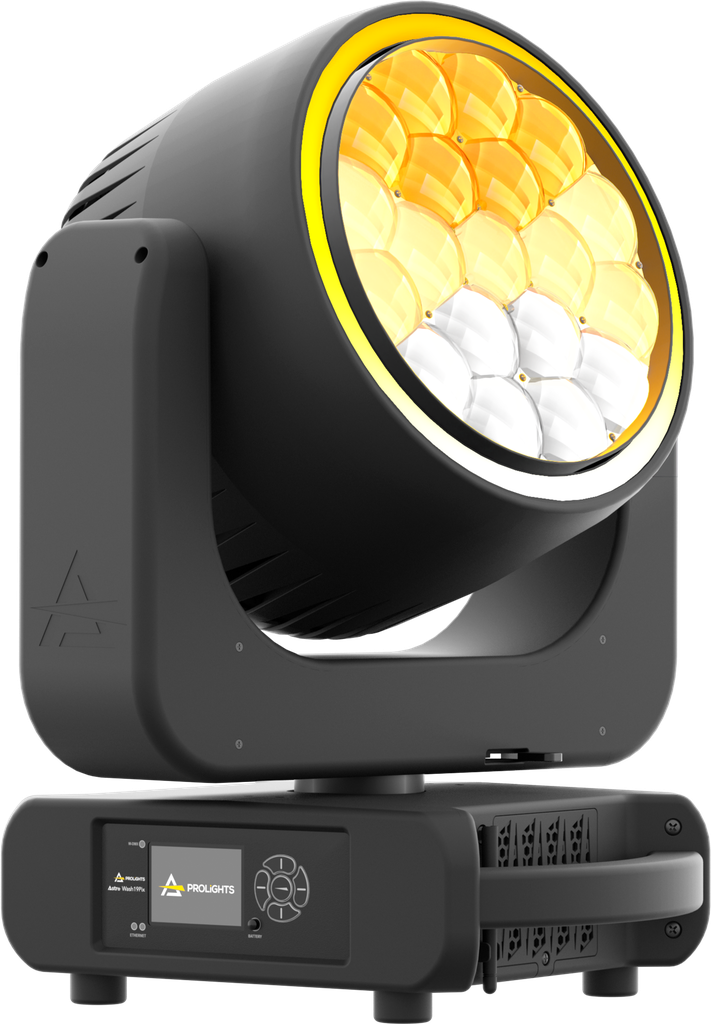

Astra Wash 19Pix
ORDER CODE: ASTRAWASH19PIXAn IP65-rated LED wash light with 19×40W RGBW/FC LEDs, electronic zoom (4°–54°), and pixel-level control for dynamic visual effects.
The ASTRA WASH 19PIX is a versatile and powerful IP65-rated LED wash light designed for both indoor and outdoor applications. It features an array of 19×40W RGBW/FC LEDs, delivering exceptional brightness and superior color mixing capabilities with a Color Rendering Index exceeding 90.
The fixture features electronic zoom functionality ranging from 4° to 54°, allowing lighting designers to precisely adjust beam angles for diverse creative applications. The innovative optical system ensures perfect color mixing and even light distribution across the beam, making it ideal for TV, broadcast, and live event lighting.
With individual pixel control capabilities, the ASTRA WASH 19PIX enables advanced pixel mapping and dynamic visual effects. The IP65-rated construction ensures reliable operation in both indoor and outdoor venues, providing protection against water and dust contamination.
The fixture's advanced control capabilities include support for multiple DMX control modes, RDM, and wireless control options (optional). With its robust design and professional-grade features, the ASTRA WASH 19PIX is the ideal solution for lighting designers seeking versatility and performance.
Main features:
- 19×40W RGBW/FC Array: Powerful LED array with exceptional color rendering (CRI > 90) and full color mixing capabilities.
- Electronic Zoom: Continuous electronic zoom from 4° to 54° for precise beam angle control.
- Pixel Control: Individual control of each LED for advanced pixel mapping and dynamic effects.
- IP65 Rating: Fully weatherproof design for reliable indoor and outdoor operation.
- Multiple Protocols: Support for DMX, RDM, Art-Net, sACN, and optional wireless control (CRMX).
- Professional Grade: Designed for broadcast, TV, live events, and theatrical applications.
GALLERY
Technical specifications
- Light source: 19×40W RGBW/FC LEDs
- Total power: 760W
- Luminous flux: 43,300 lm (@ full white)
- Color Rendering Index (CRI): > 90
- Source life expectancy: > 50,000 hours
- Color temperature: Full range 2700K–10000K with macro presets
- Electronic zoom: 4° to 54° (continuous)
- Beam distribution: Uniform and even across zoom range
- Optics: Advanced multi-lens system with zoom mechanism
- Color mixing: 5-layer optics with CMY + CTO filters
- DMX channels: 1–44 channels (selectable)
- Protocols: DMX512, RDM, Art-Net, sACN, RDMnet
- Wireless control: Optional CRMX wireless DMX transceiver
- Pixel control: Individual pixel-level control for 19 LEDs
- Display: LCD graphic user interface

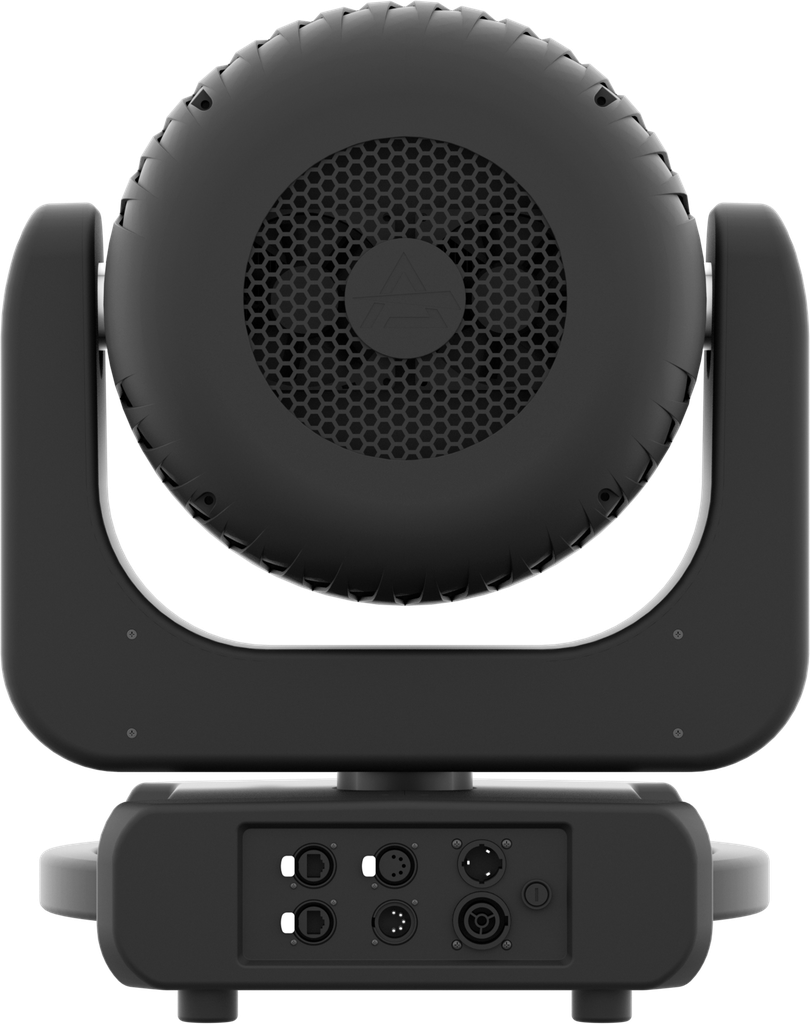

- Connectors: IP67-rated XLR 5-pin (DMX) & Ethernet
- IP rating: IP65 (temporary outdoor use)
- Operating temperature: -20° C to +45° C (-4° F to +113° F)
- Cooling: Advanced heat dissipation system
- Dimensions (W×H×D): 530×640×485 mm / 20.87″×25.20″×19.09″
- Weight: 38 kg / 83.8 lbs (without yoke)
- Mount: Omega bracket with multiple rigging options
- Power connection: 63A Socapex connector
