World premiere · leat con 2026

The CLUSTER
family grows.

ROXX unveiled two new members of the CLUSTER family: the CLUSTER BIG EYE and the CLUSTER M2. Be the first to see them in Belgium.

Register your interest Discover them

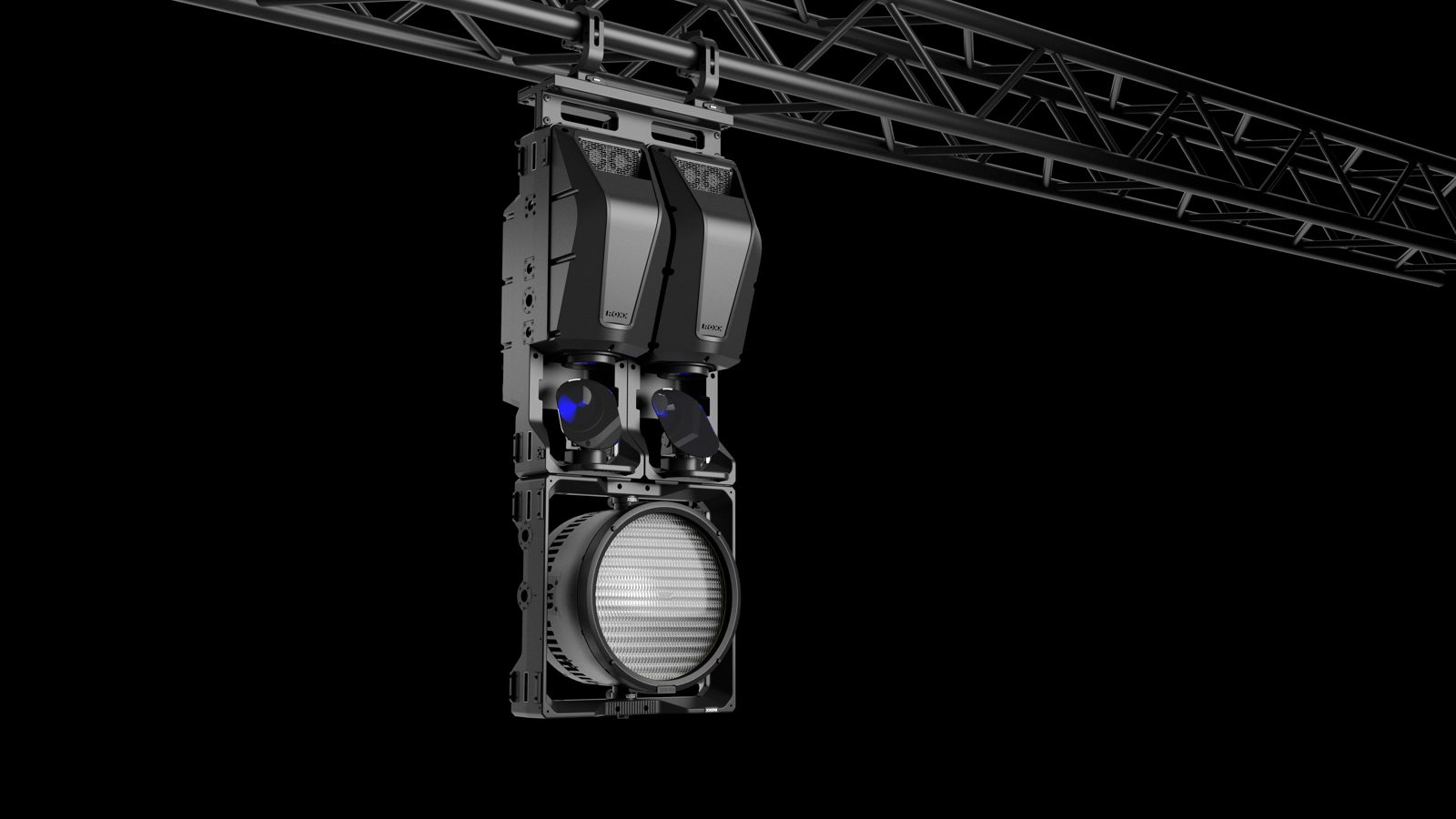

ROXX CLUSTER M2 mounted with a CLUSTER BIG EYE on a truss
CLUSTER BIG EYE

Shape it
your way.

Blinder, wash and effect in one fixture: as a single unit or as part of the CLUSTER system, from one fixture to large, even surfaces.

  • RGBA+WW main engine, more than 80,000 lm, with colours and dimming matched to the CLUSTER blinders
  • 48 individually controllable 10 W RGBA pixels around it: sparkle, coloured backlight, pixel animations
  • Magnetic, tool-free front optics: clear, Signature Star, DWE 56°, 12″ Fresnel 34°, 4-way barndoor
  • Easy-Click: in the CLUSTER frame or stand-alone, on a rig, a stand or the floor
  • IP66 · 8.7 kg without yoke

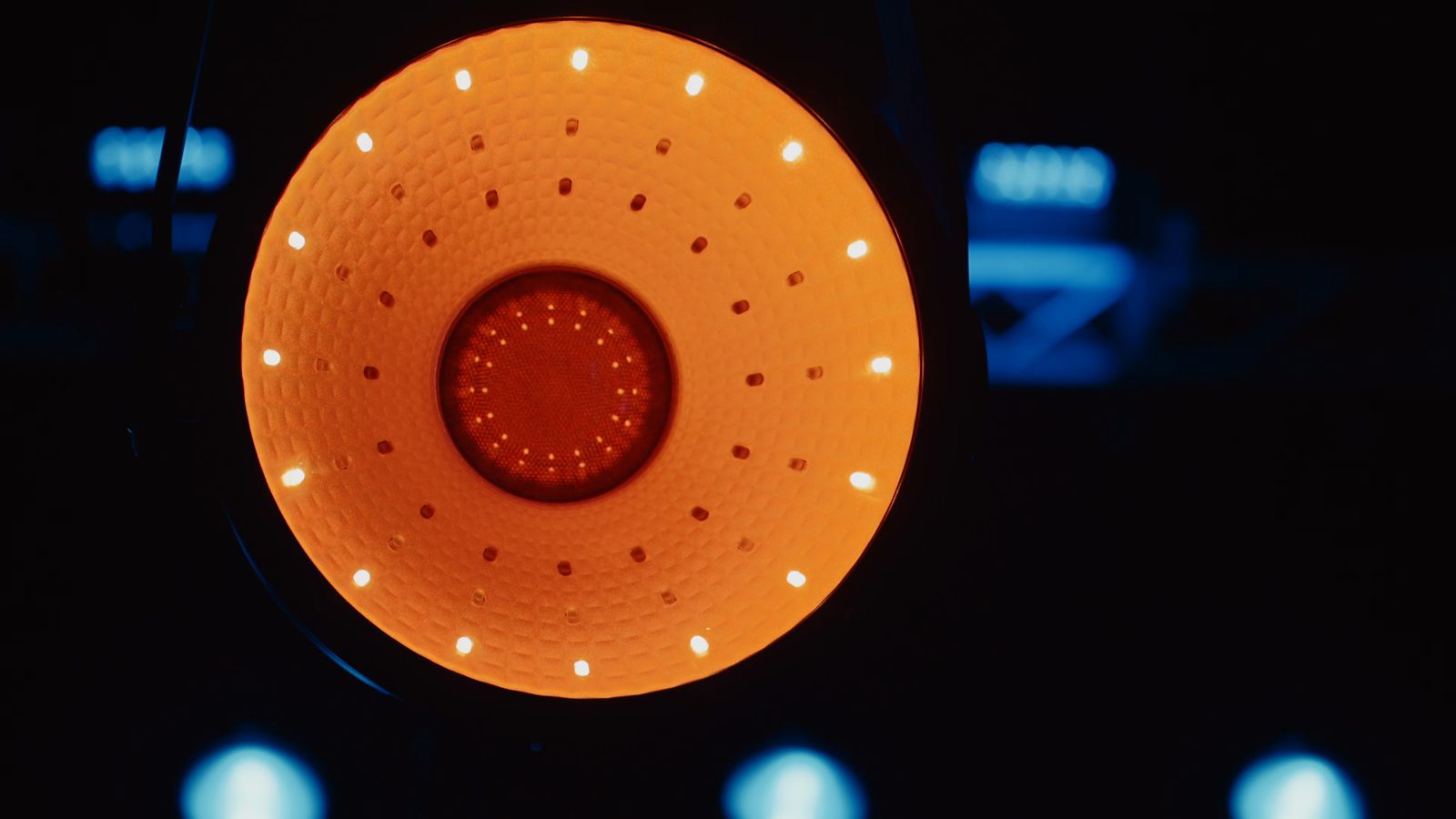

CLUSTER BIG EYE with its pixel ring lit

Change the look in seconds

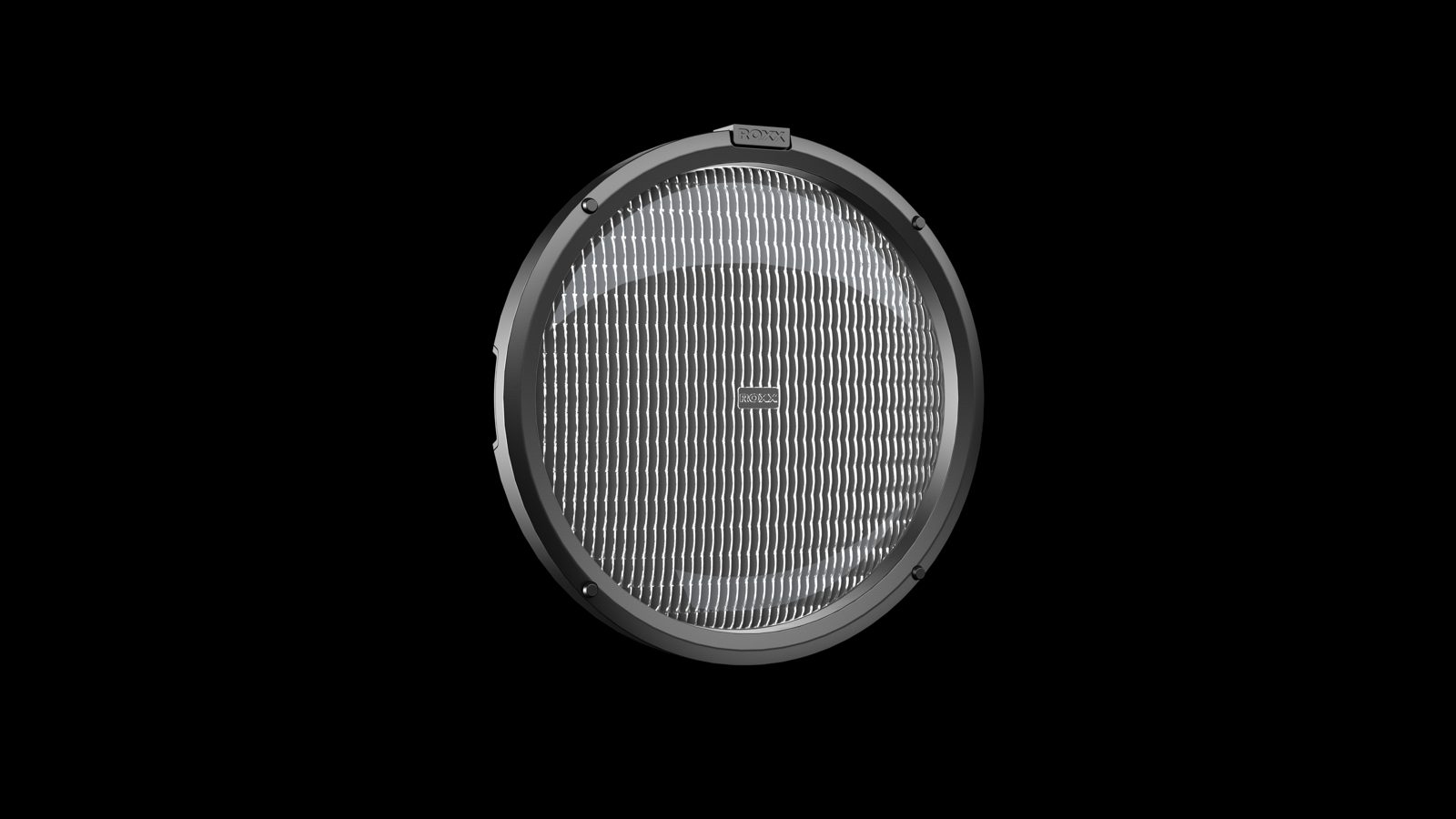

DWE lens
DWE lens · 56°

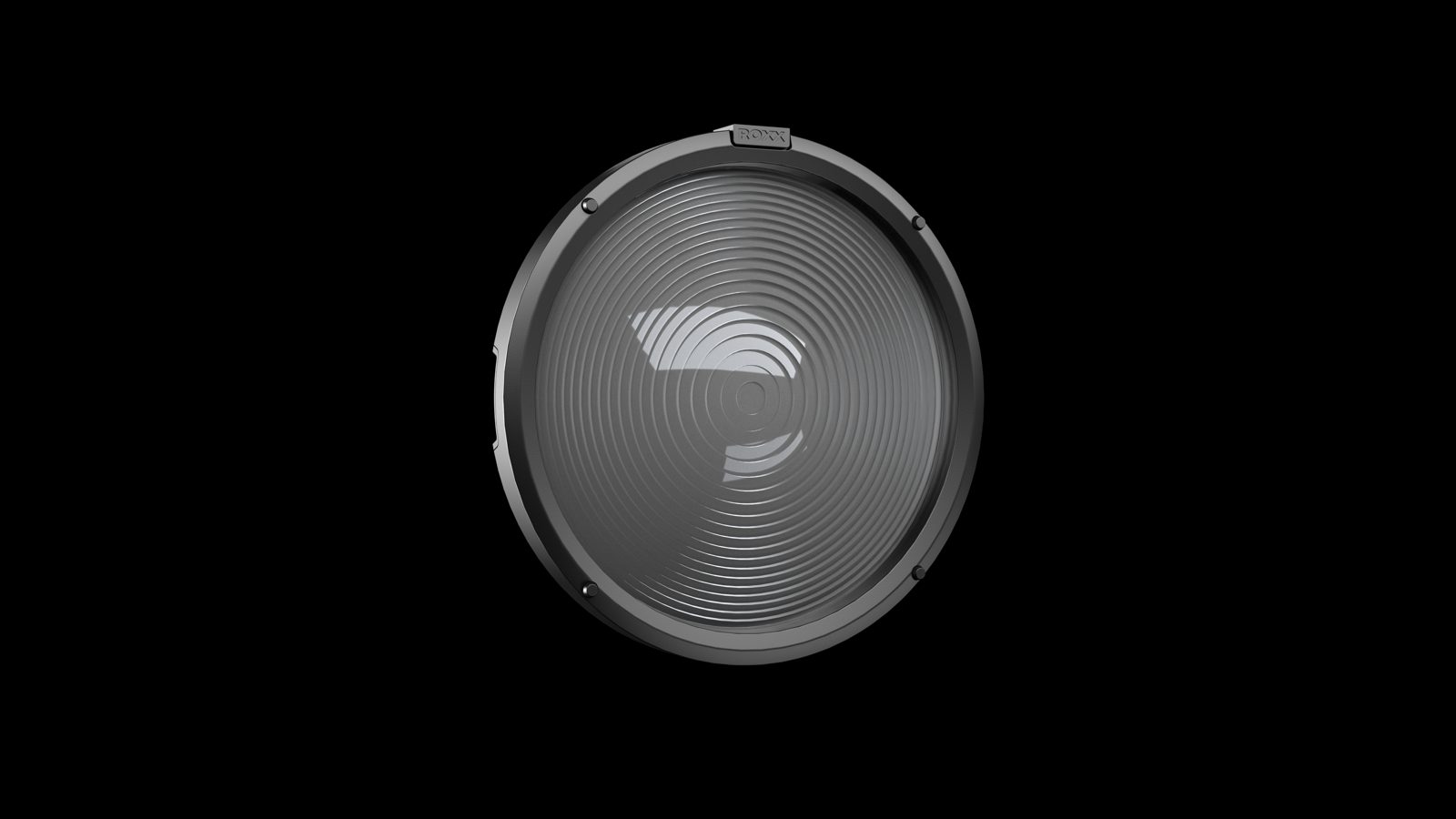

Fresnel lens
12″ Fresnel · 34°

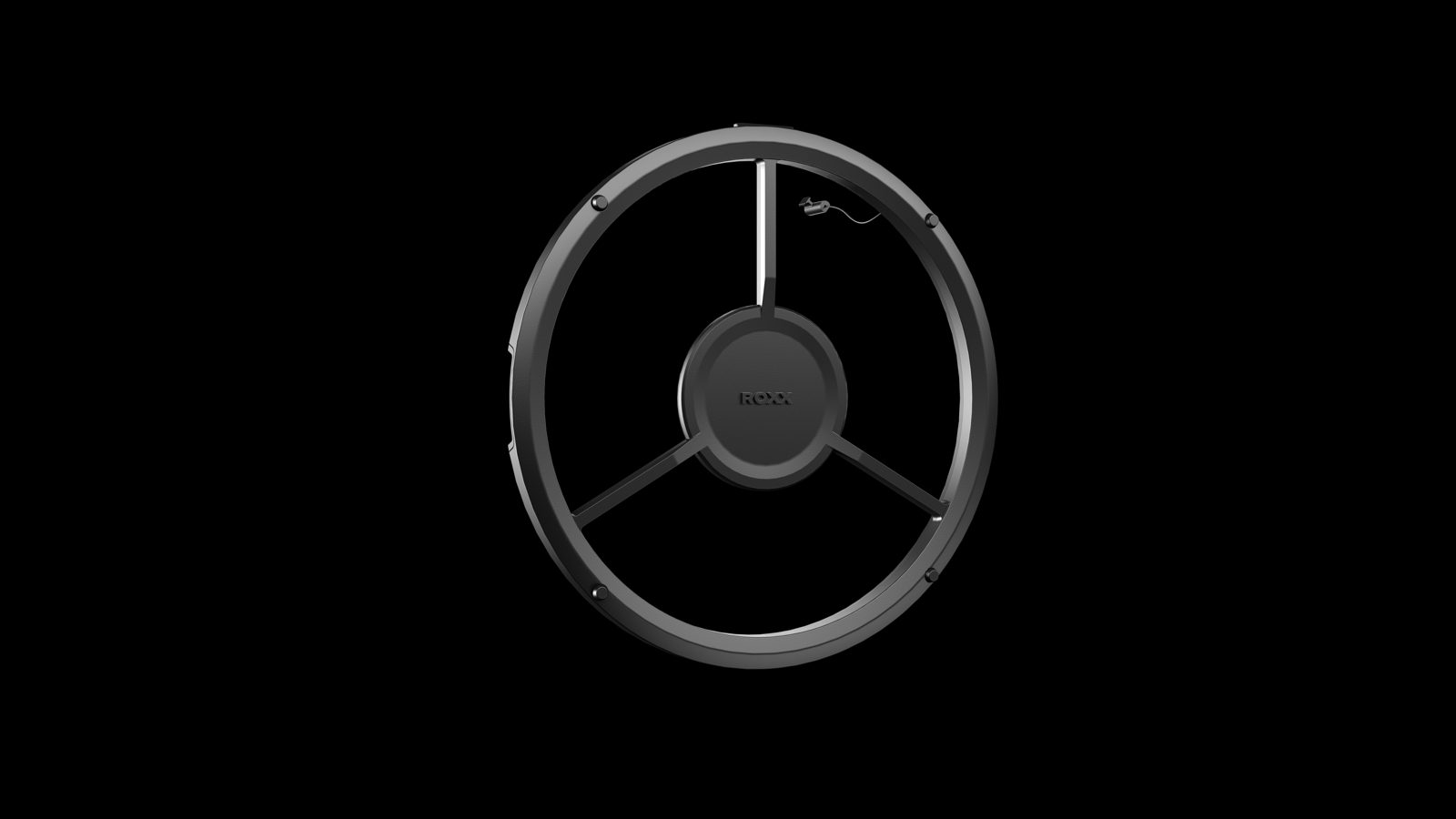

Signature Star
Signature Star

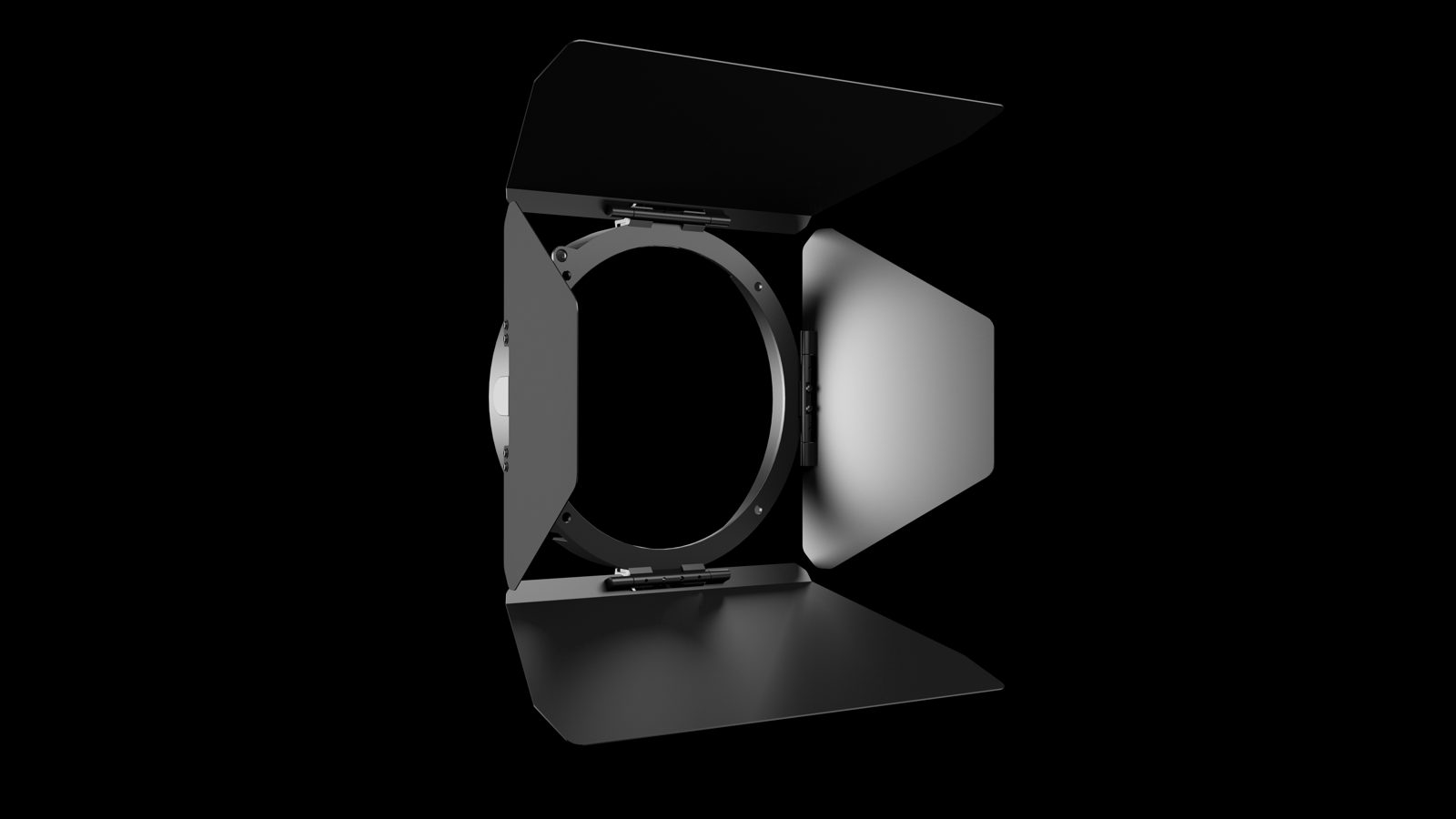

4-way barndoor
4-way barndoor

See it in action

Gallery

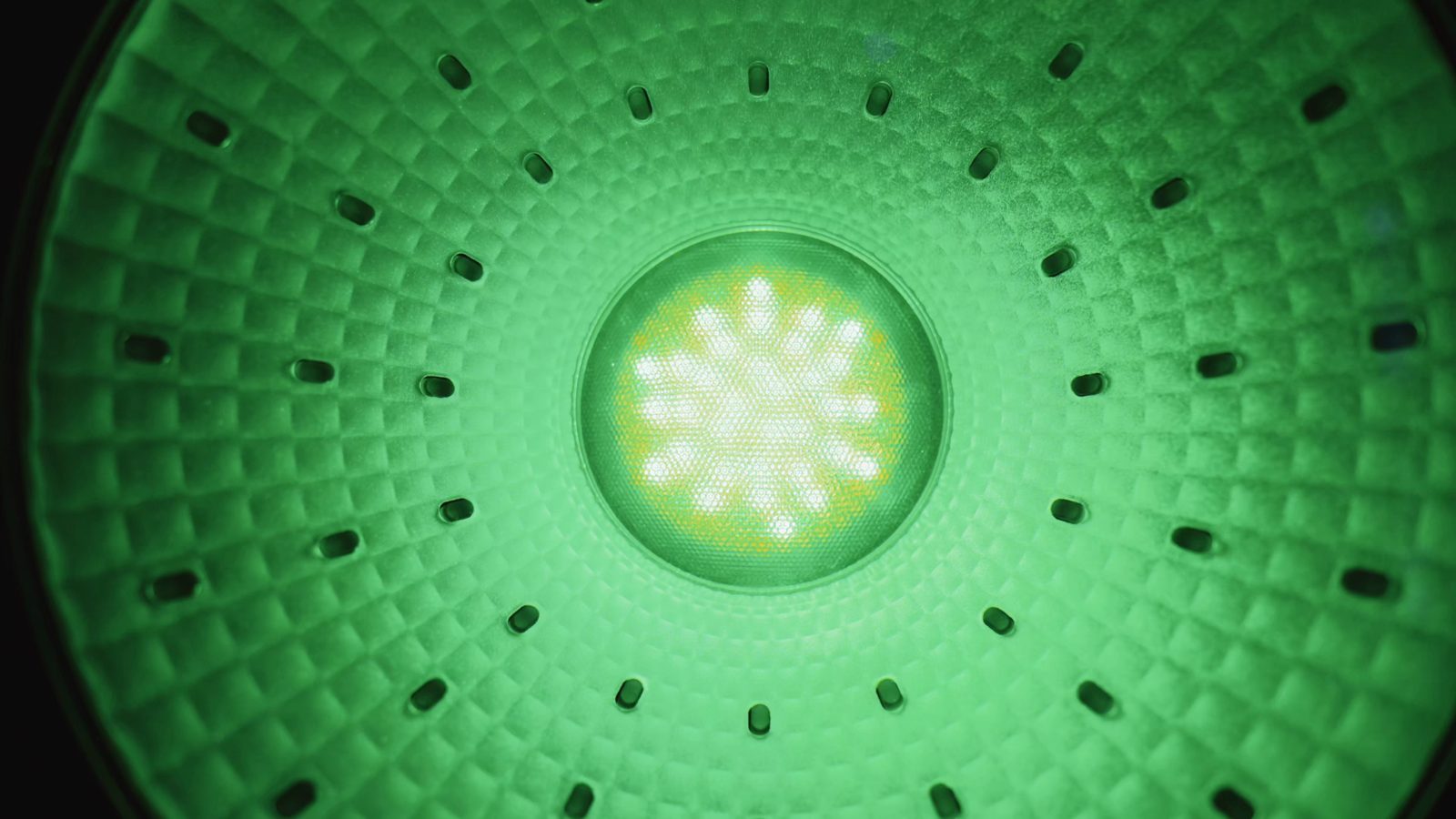

CLUSTER BIG EYE: Pixel layer in colour
Pixel layer in colour

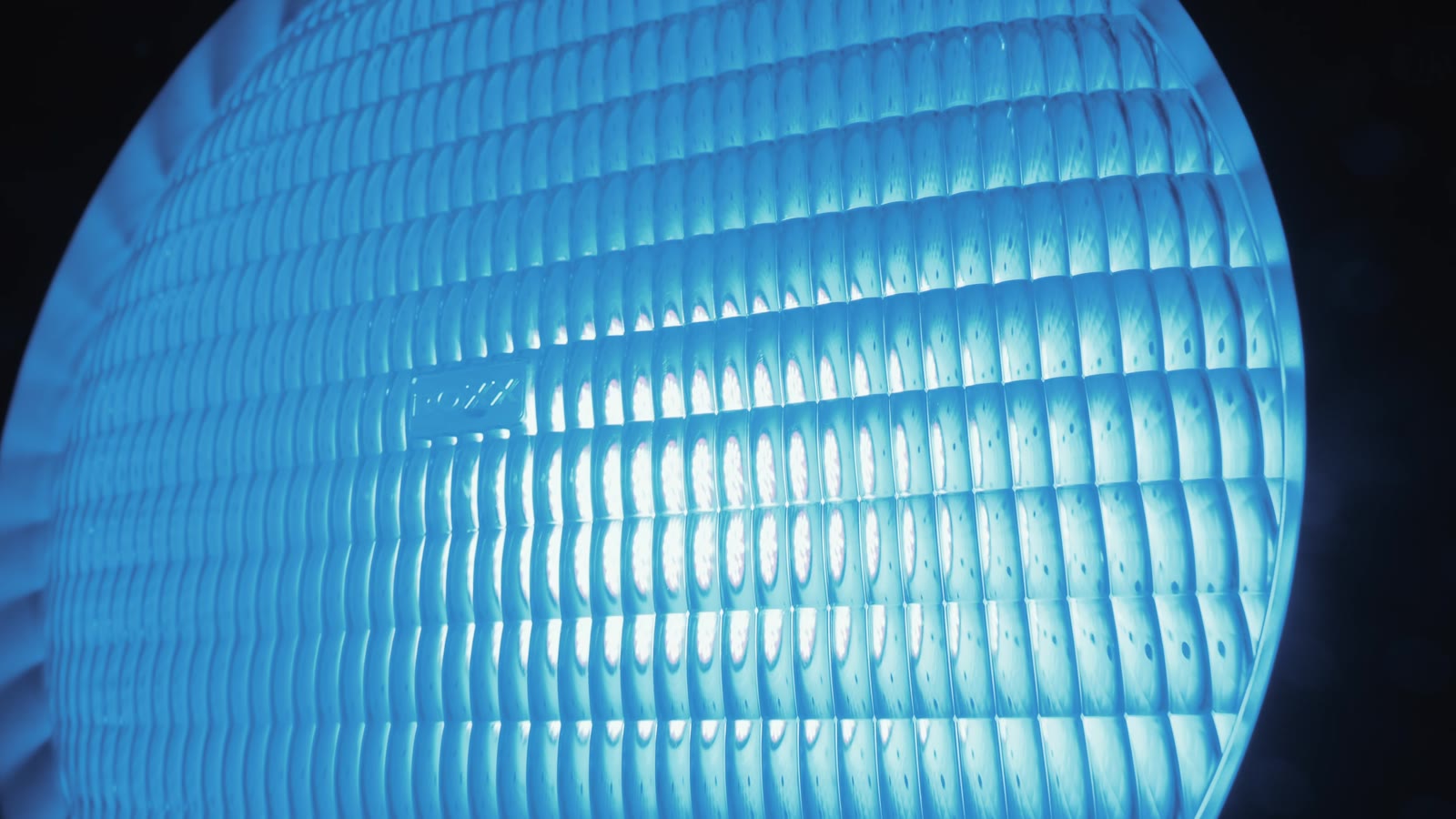

CLUSTER BIG EYE: Front lens close-up
Front lens close-up

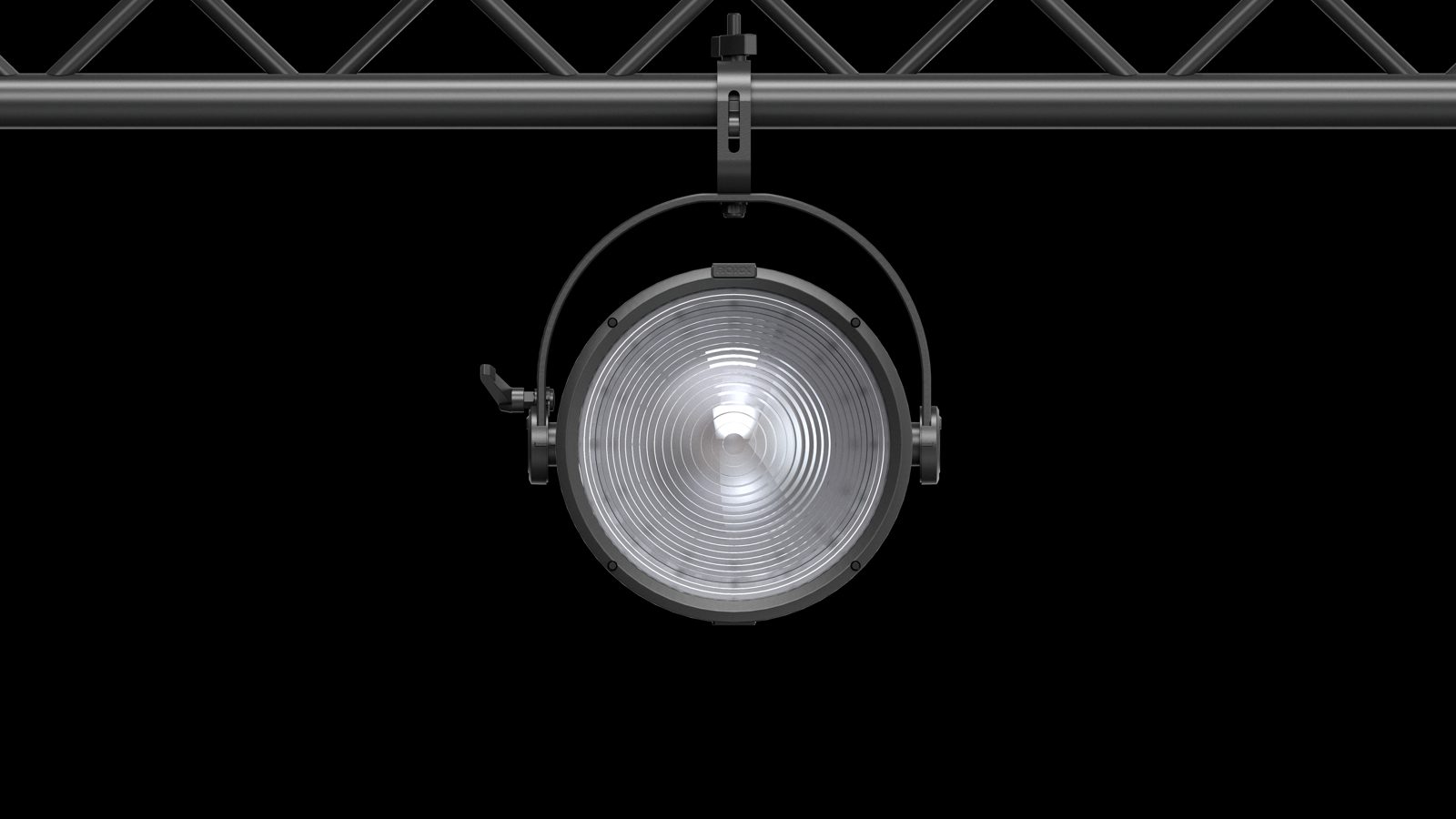

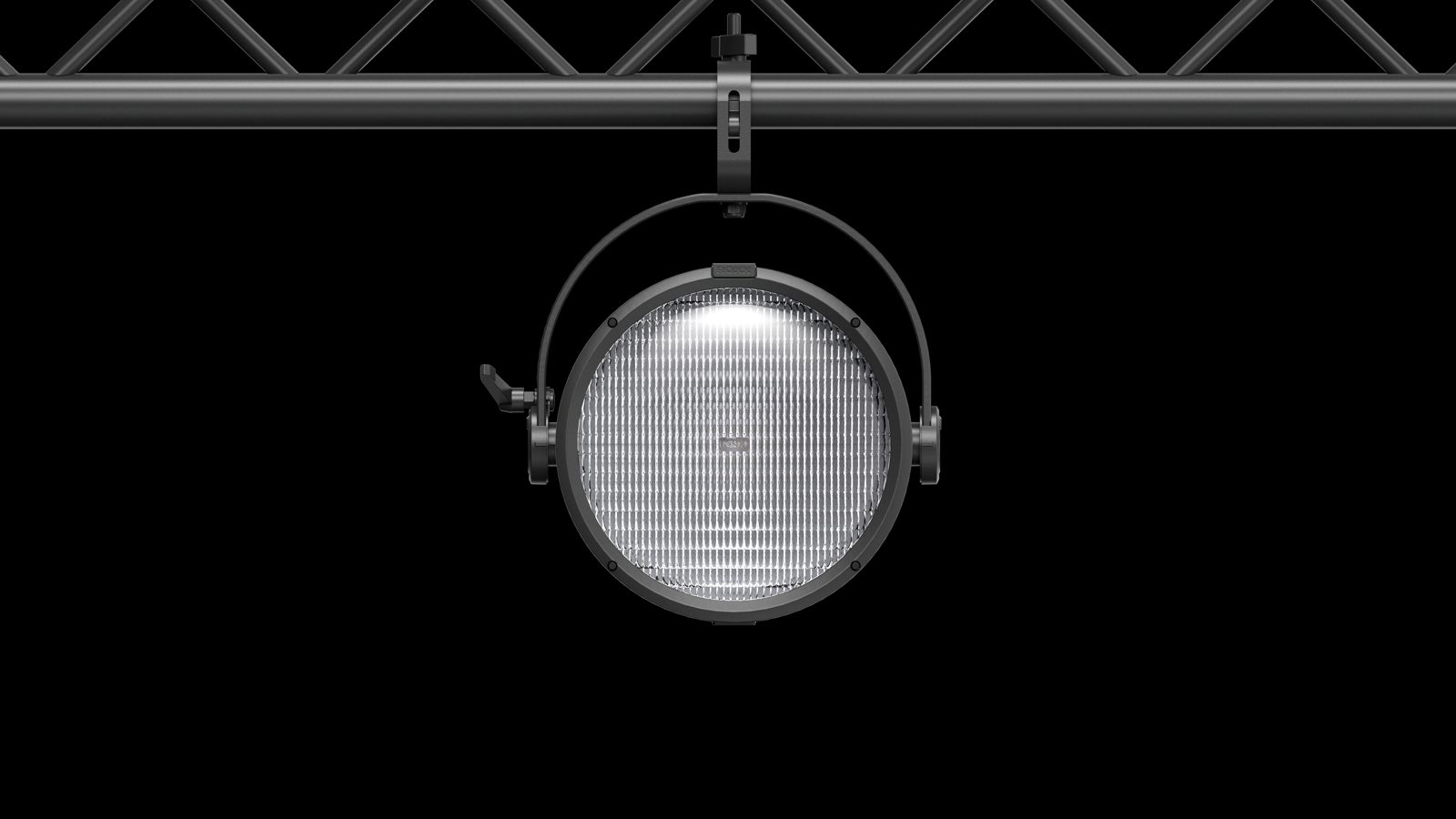

CLUSTER BIG EYE: On a truss, Retro Yoke
On a truss, Retro Yoke
CLUSTER BIG EYE: On a truss, Retro Yoke
On a truss, Retro Yoke

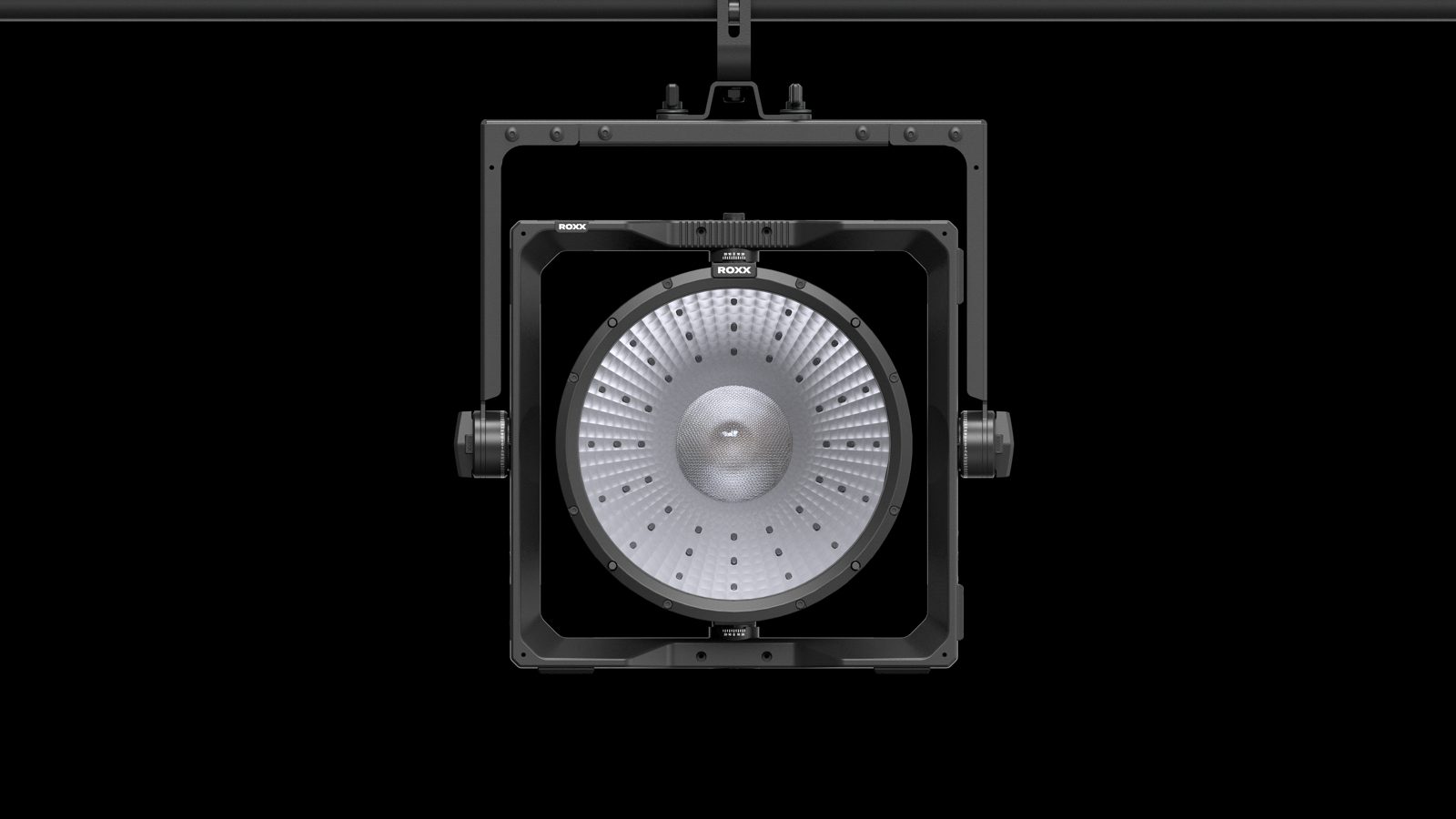

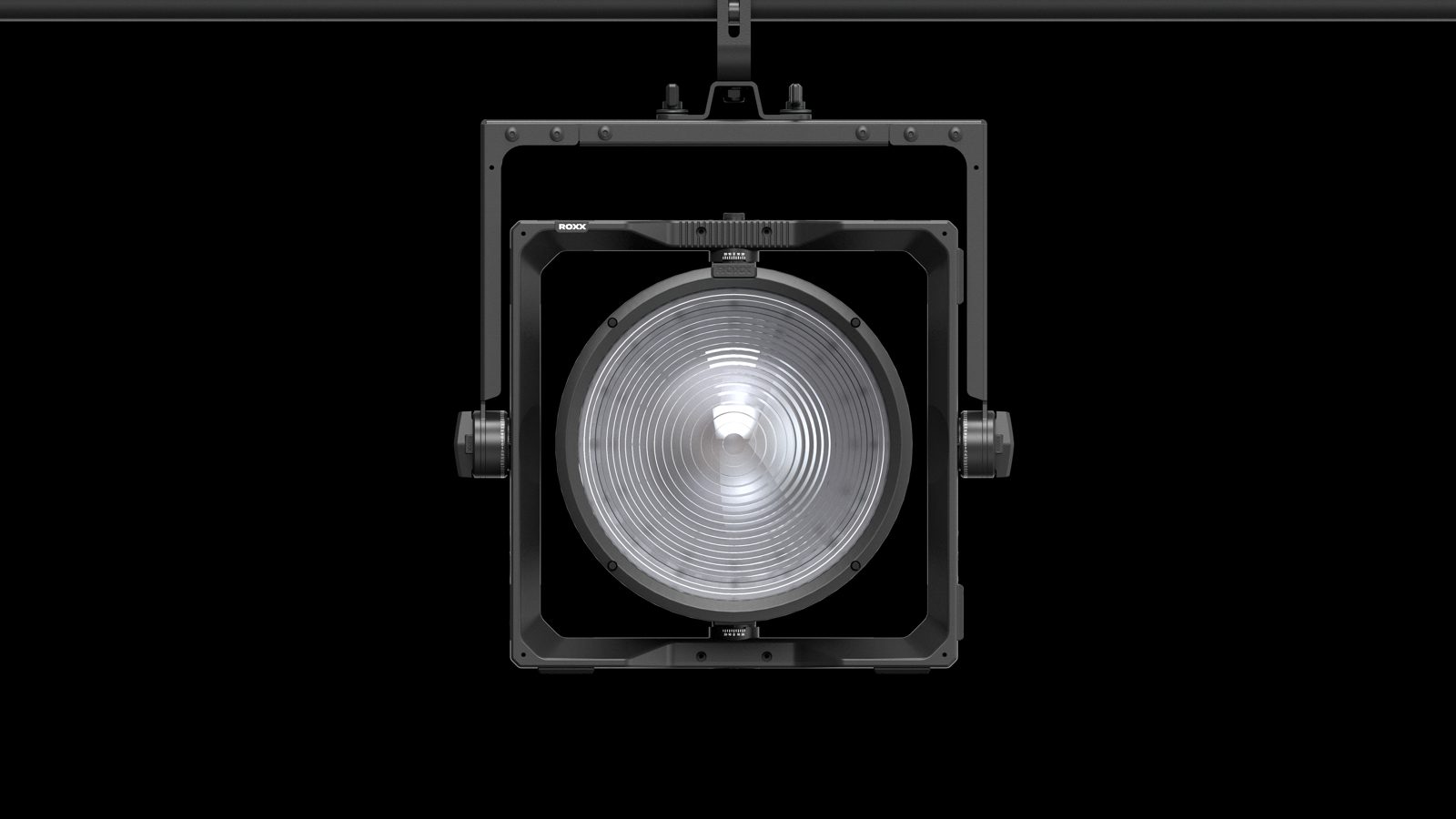

CLUSTER BIG EYE: In the CLUSTER frame
In the CLUSTER frame

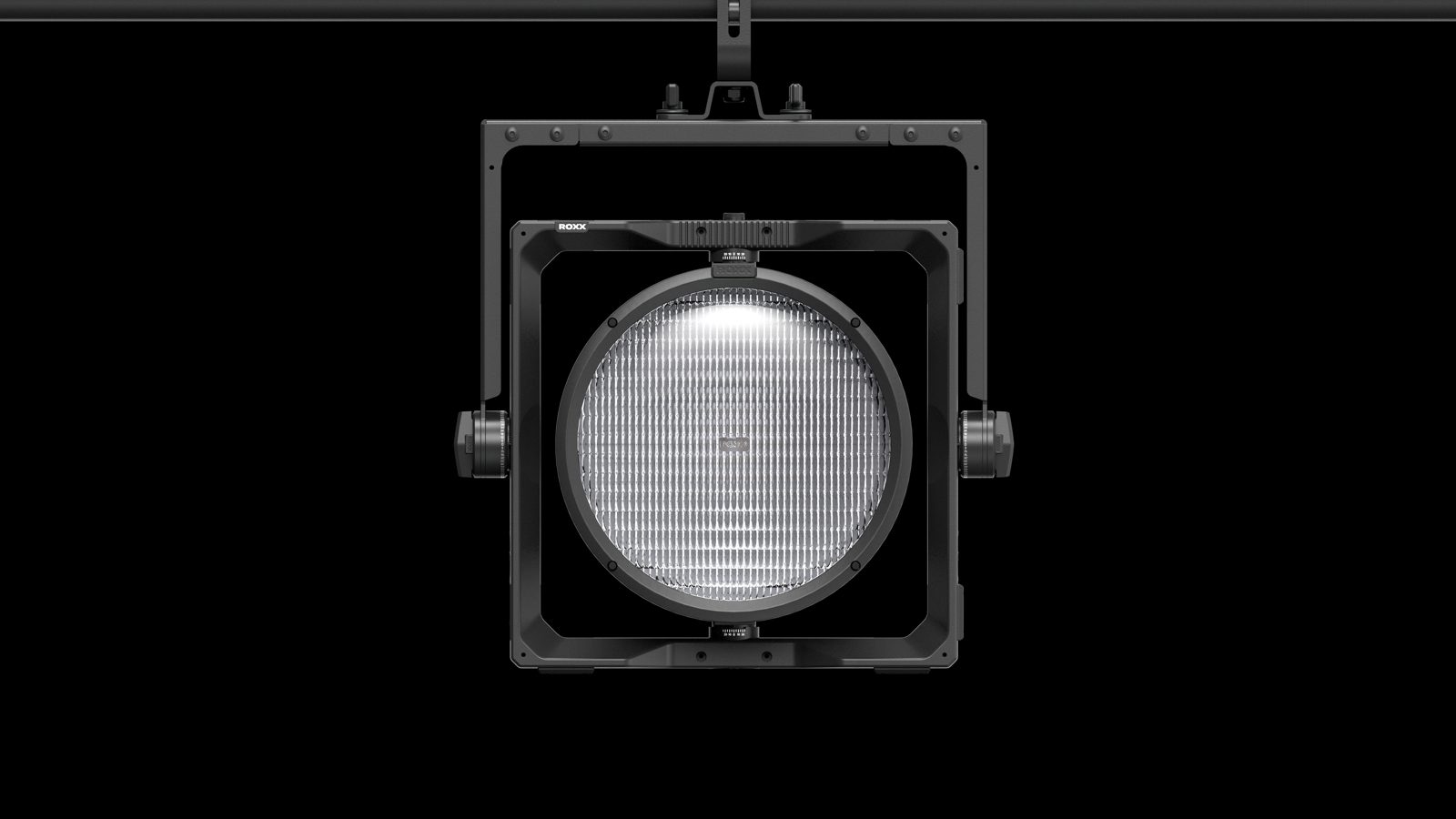

CLUSTER BIG EYE: In the CLUSTER frame
In the CLUSTER frame
CLUSTER BIG EYE: In the CLUSTER frame
In the CLUSTER frame

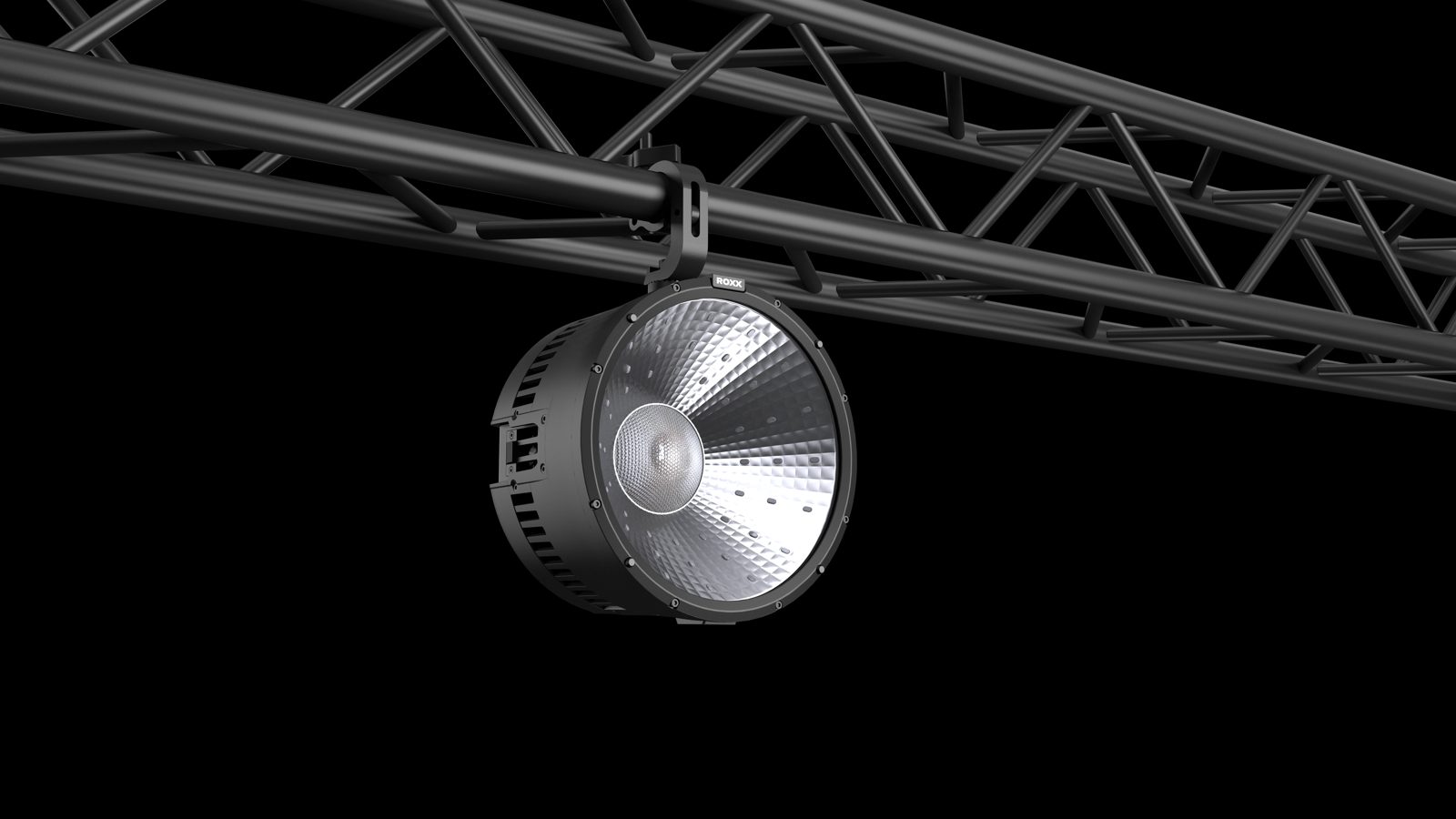

CLUSTER BIG EYE: Hanging by the BIG EYE Connector
Hanging by the BIG EYE Connector

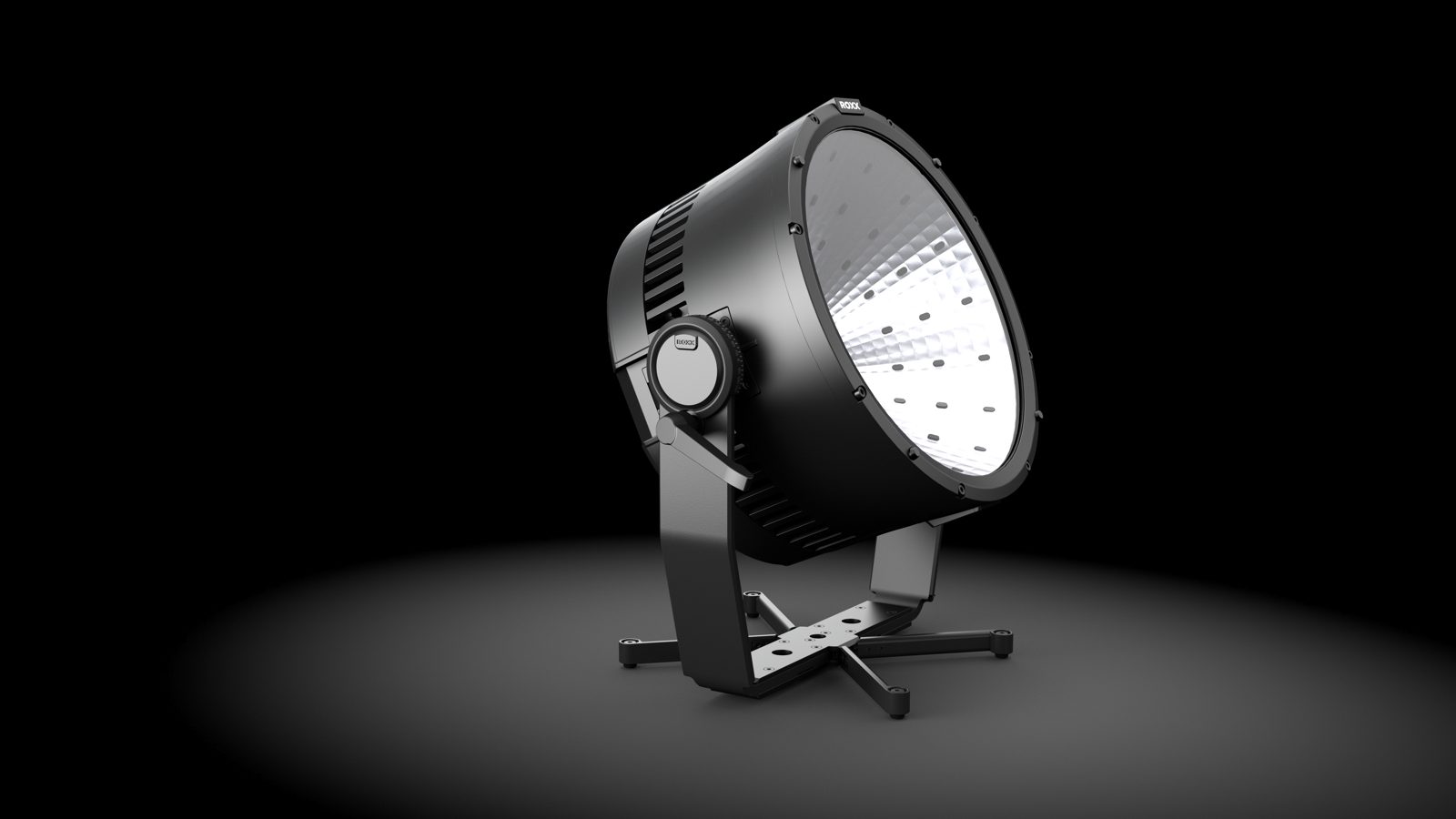

CLUSTER BIG EYE: On a floor stand
On a floor stand

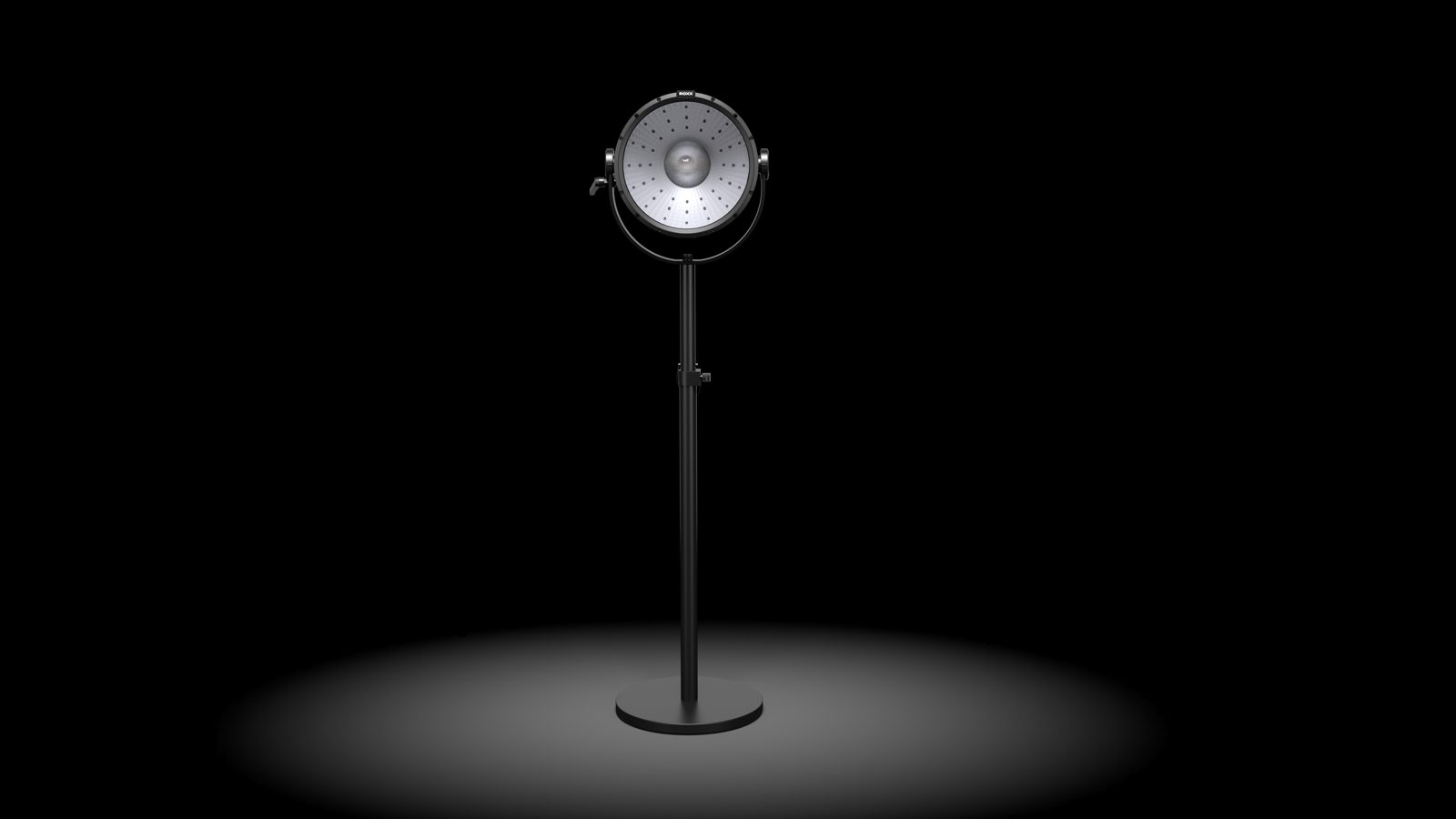

CLUSTER BIG EYE: On a stand
On a stand

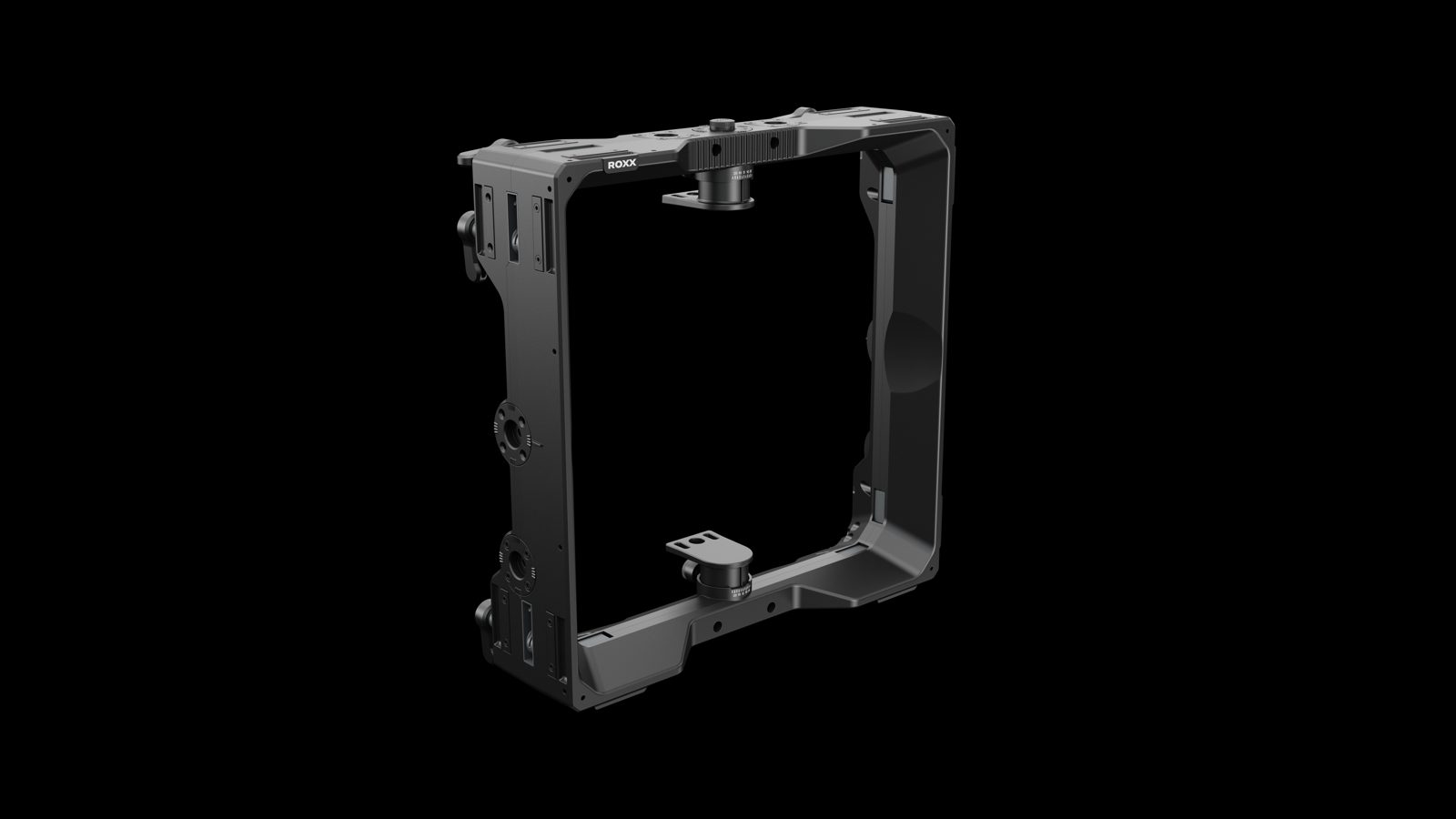

CLUSTER BIG EYE: CLUSTER Frame
CLUSTER Frame

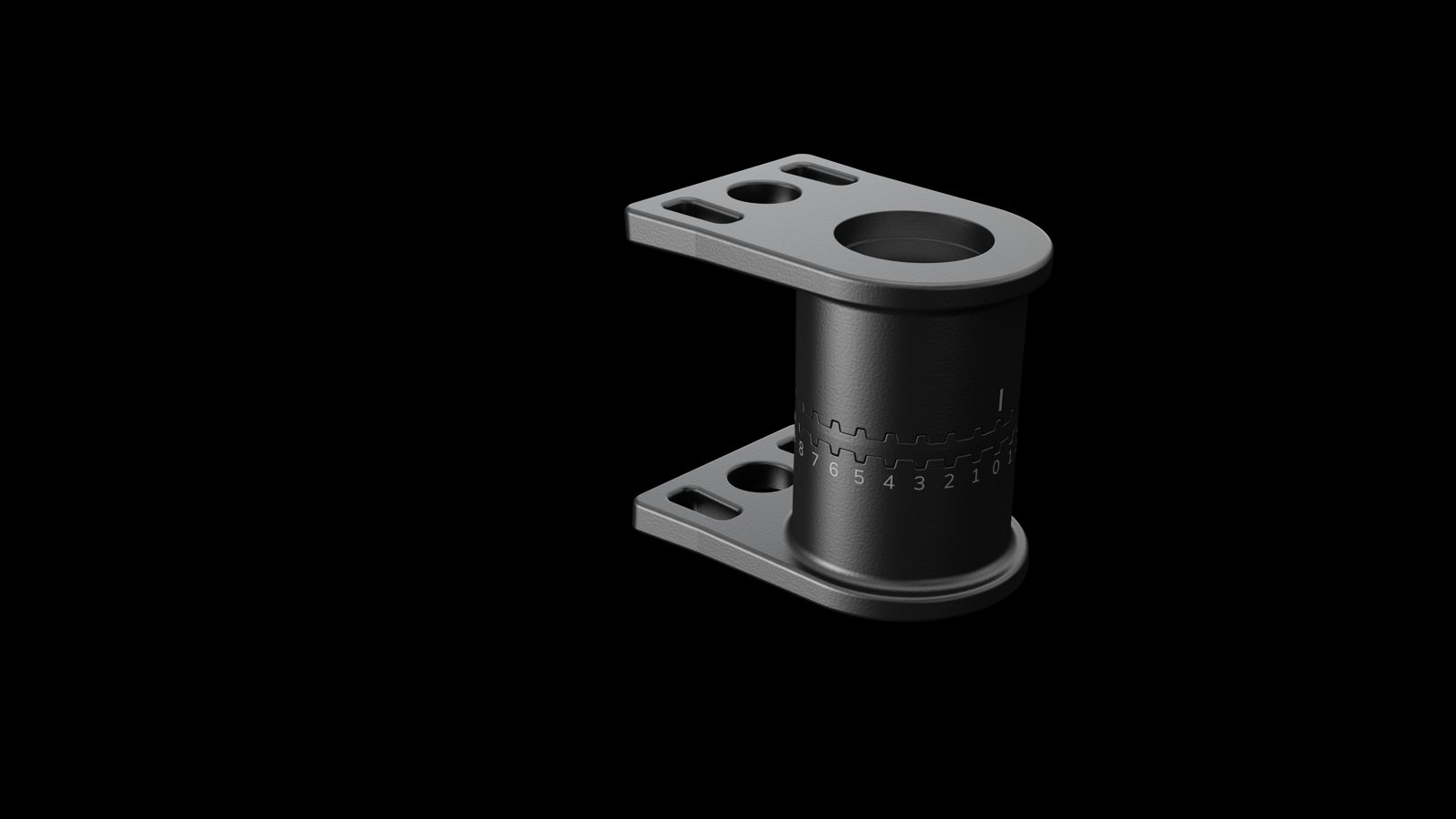

CLUSTER BIG EYE: BIG EYE Connector
BIG EYE Connector

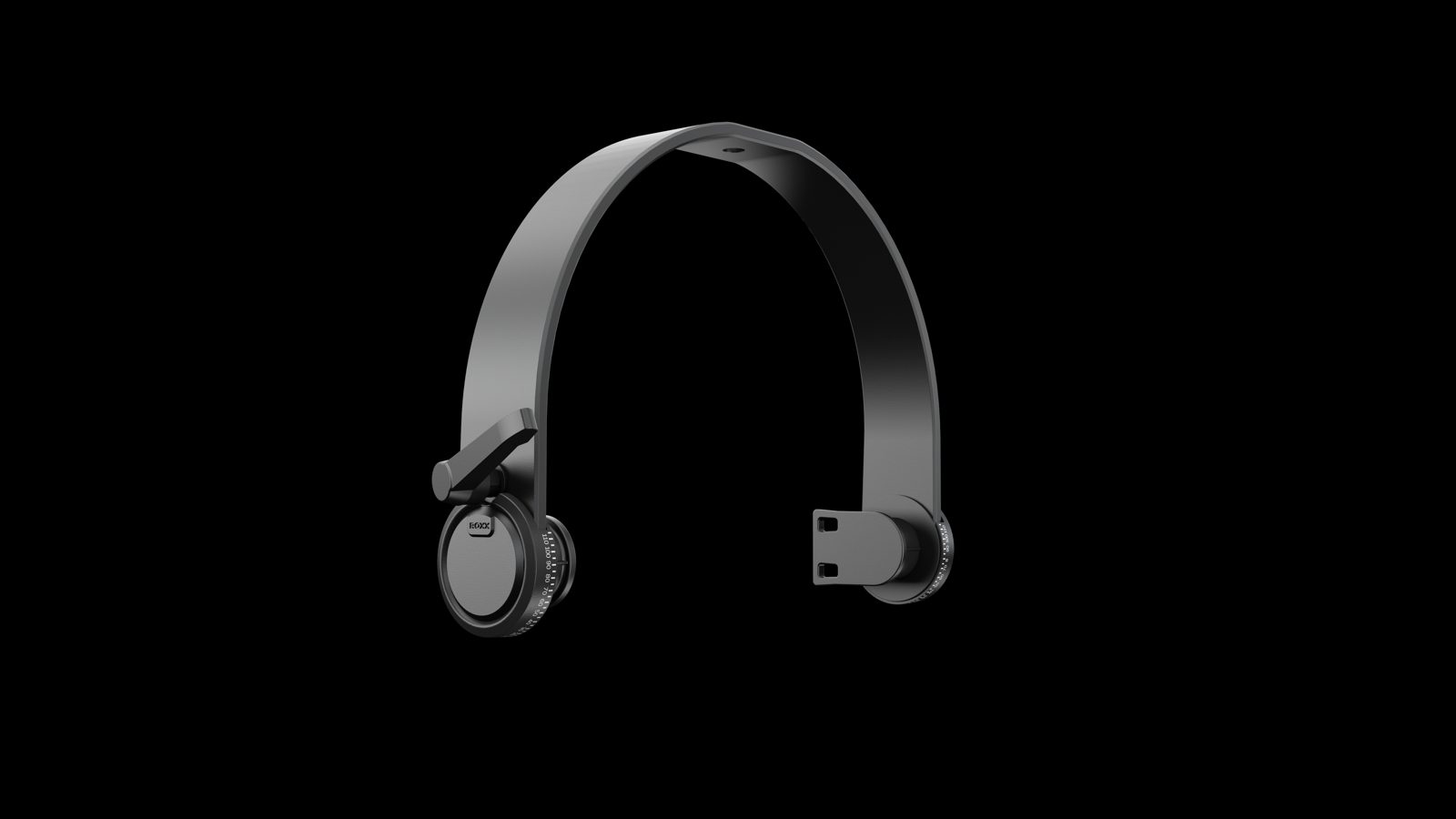

CLUSTER BIG EYE: Retro Yoke
Retro Yoke

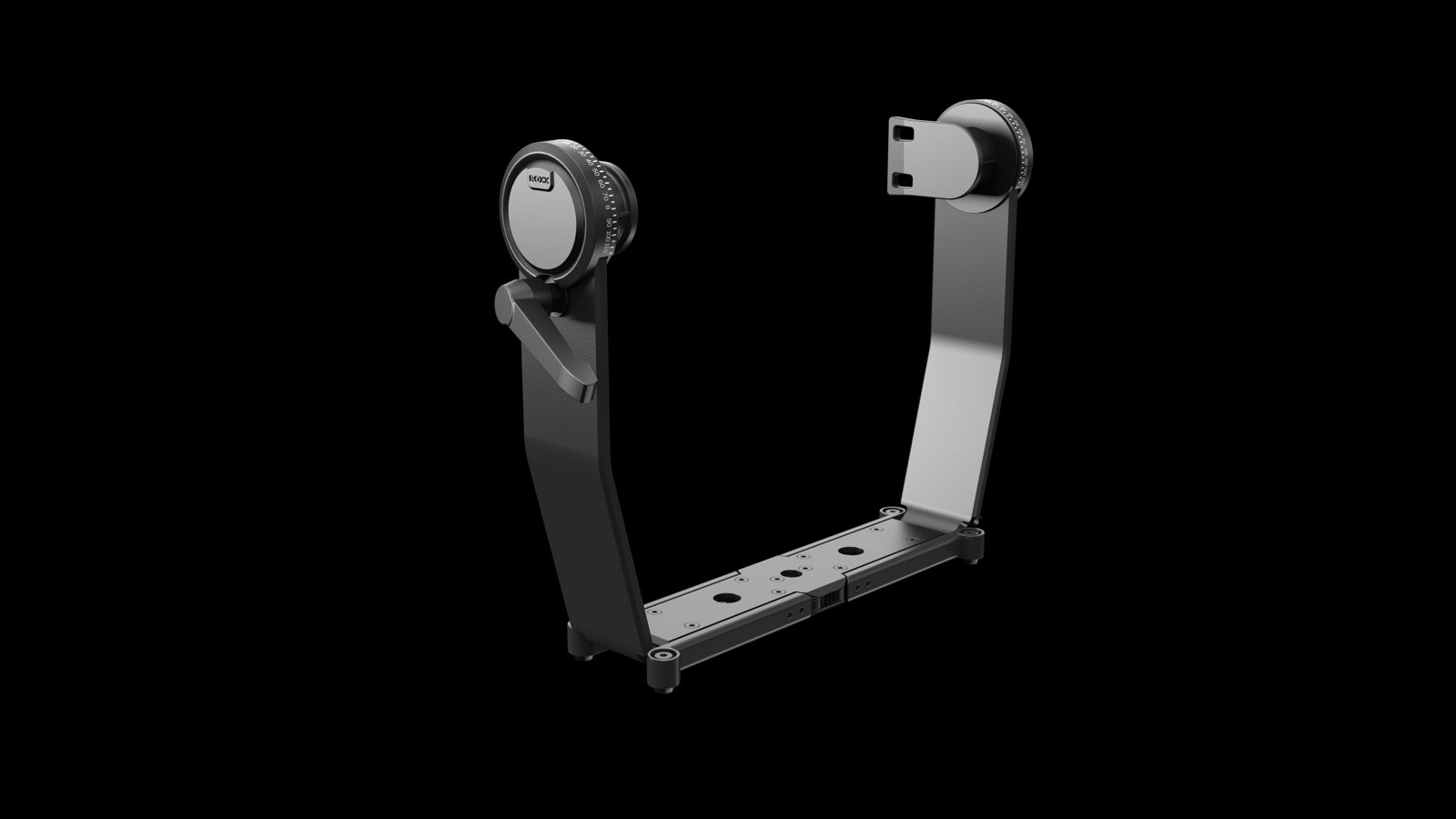

CLUSTER BIG EYE: Stand yoke
Stand yoke
CLUSTER M2 beam in red
CLUSTER M2

Beam meets
speed.

ROXX's first scanner. It moves a lightweight mirror instead of a full head, for abrupt cuts, fast chases and movement patterns a moving head can't follow.

  • Mirror movement: pan 150°, tilt 40°
  • 400 W cold white LED, more than 45,000 lx at 5 m
  • 8:1 zoom, from 2° to 16°
  • 9 rotating + 14 static gobos · 8-facet circular and 4-facet linear prisms · frost
  • ROXX Deep CMY™ (patent pending): true magenta and deep red in one colour system
  • IP66 · NFC addressing · KLSTR-ready · 13.7 kg without yoke

See it in action

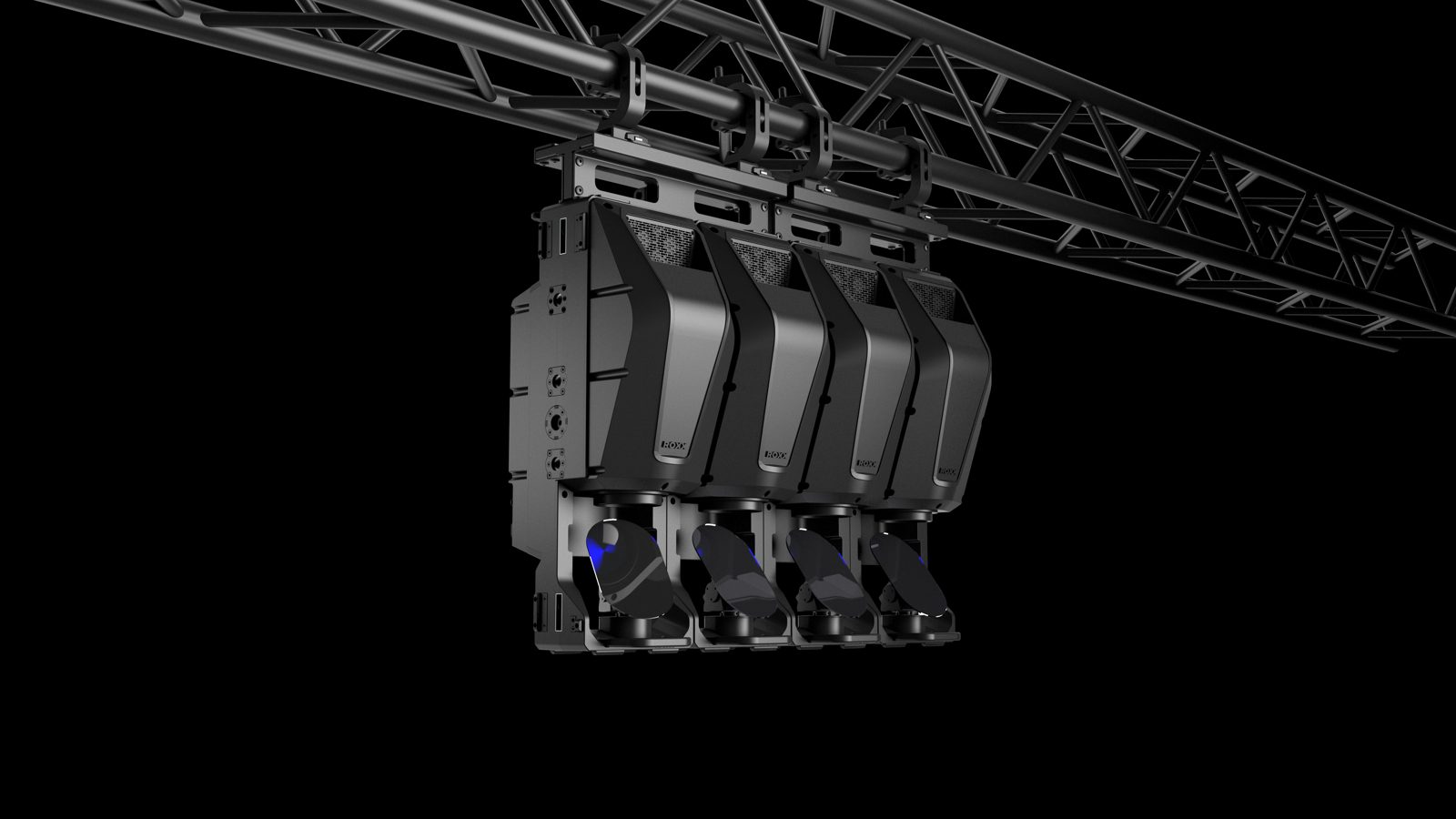

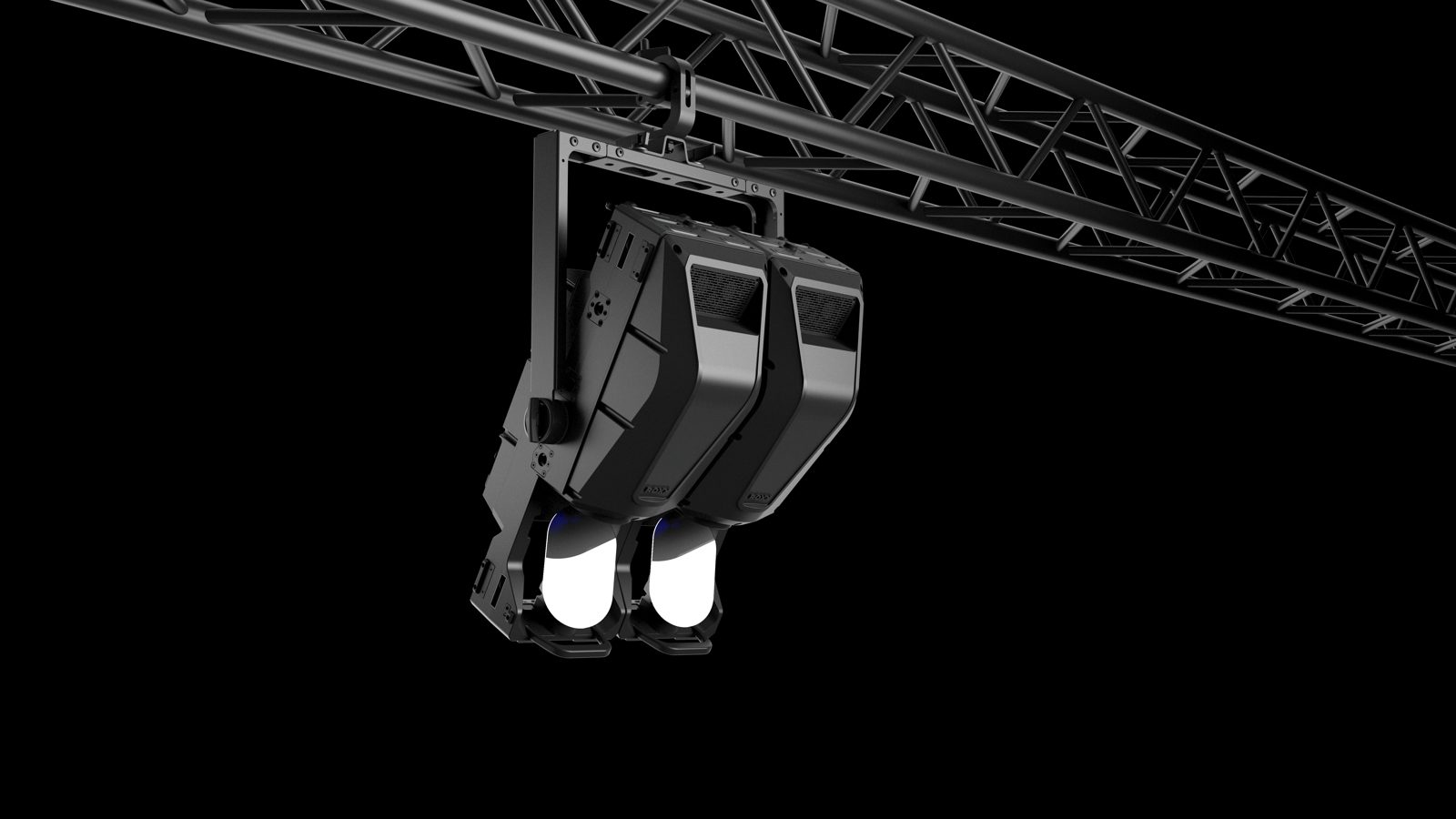

Two CLUSTER M2 on a yoke Four CLUSTER M2 rigged side by side
CLUSTER compatible

Fits the rig
you own.

Both link tool-free with every CLUSTER fixture, including the blinders, strobes and the B4 EVO. Add them to your CLUSTER inventory instead of starting over.

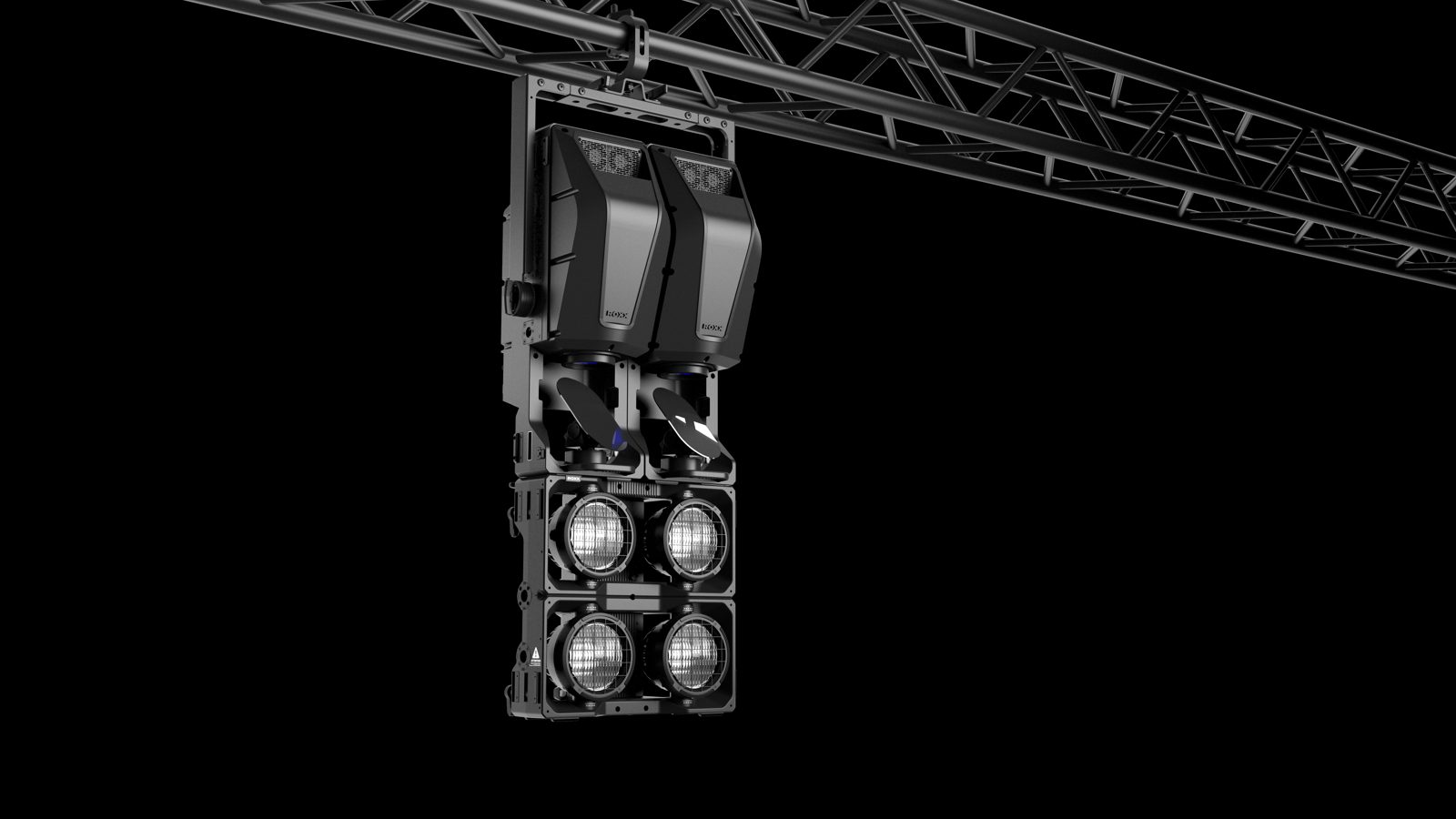

CLUSTER M2 combined with a CLUSTER B4
Coming to Belgium with Luxillag

Be the first
to see them.

Register your interest and we'll let you know as soon as demos start in Belgium.

All specifications are preliminary, from ROXX (October 2026), and may change.
